ELECTRONIC BEAM TUBE
6LK7I
Price on request
ELECTRONIC BEAM TUBE
Available on back-order
Description

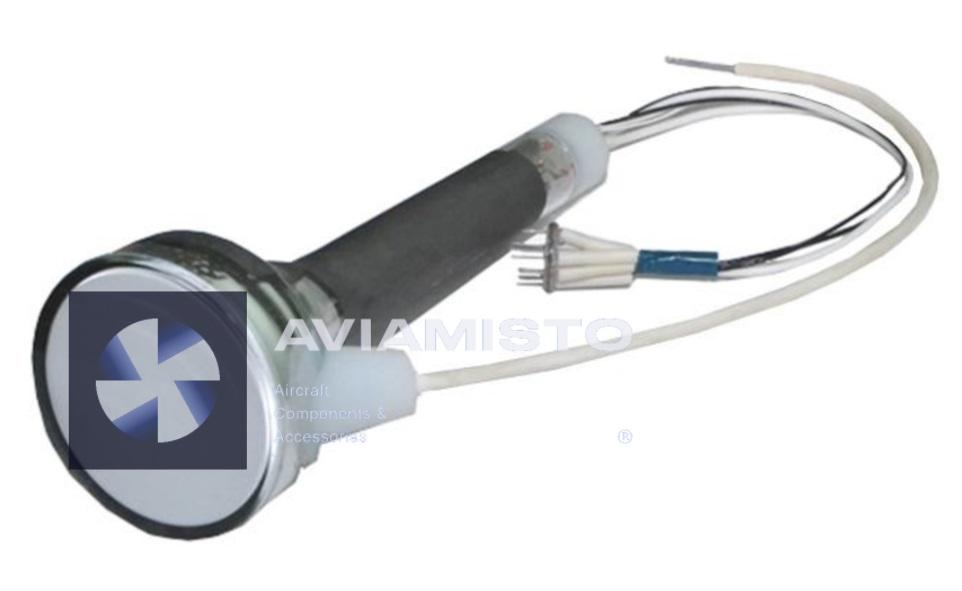

6LK7I electron-beam projection tube is designed to work in combination with an optical device in special-purpose equipment.
Details
1. Glow voltage – 6.3 V.
2. Heater current – from 0.27 A to 0.33 A.
3. Voltage of the cathode-ray focusing tube – from 0 to 400 V.
4. The voltage at the 2nd anode is 15,000 V.
5. Blocking voltage – from -70 V to -30 V.
6. The brightness of the screen is at least 6000 cd / m2.
7. Line width:
– in the center of the screen – no more than 0.2 mm;
– at the edge of the screen;
– no more than 0.22 mm.
8. Modulation voltage – no more than 35 V.
9. The minimum operating time is 1000 hours.
10. The brightness of the parasitic glow – no more than 0.05 cd / m2.
