6D24N

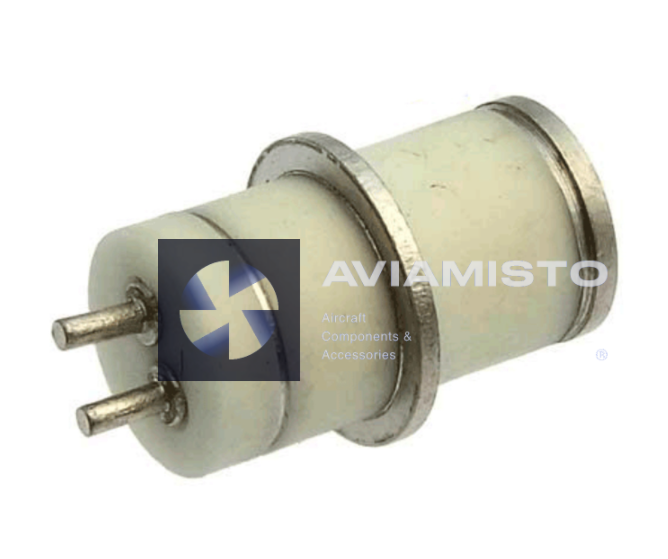

High-frequency diode 6D24N for detecting high-frequency and microwave voltage in measuring input detectors and coaxial junctions of lamp voltmeters. Design in a cermet sheath, with hard leads. Weight 2.5 g.

1. Filament current 100 ± 20 mA.
2. Anode current, not less than 0.2 mA.
3. Reverse current, no more than 0.1mA.
4. Input resistance, not less than 100 kOhm.
5. Resonant wavelength, no more than 5 cm.
6. Voltage of vibration noise, no more than 1mV.
7. Interelectrode capacities:
– anode-cathode, no more than 0.8 pF,
– heater cathode, no more than 3 pF.
8. Operating time, not less than 1500 hours.
9. Heater voltage 6.0-6.6 V.
10. Reverse voltage 1000 V.
11. Voltage cathode-heater 50 V.
12. The cathode current is 0.7 mA.
