LAMPS
5TS4S
Price on request
LAMPS
Available on back-order
Description

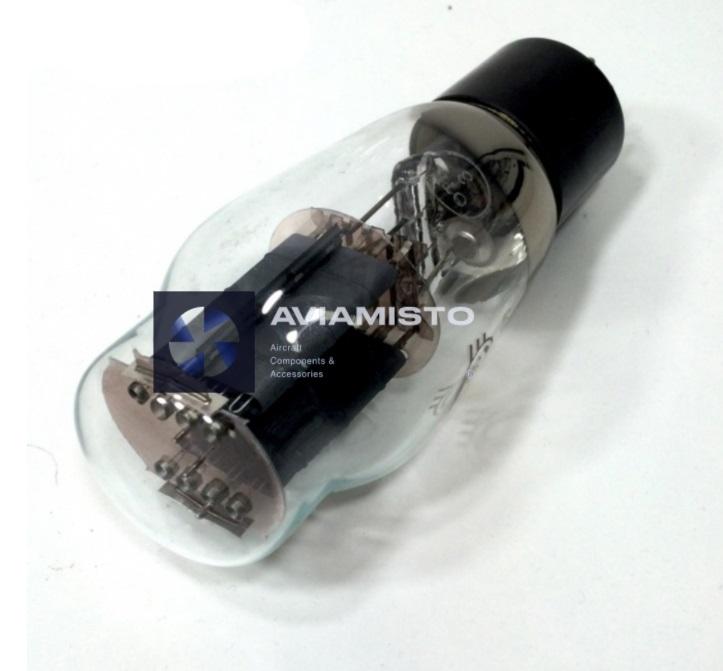

Two-anode kenotron 5Ts4S with an indirectly heated oxide cathode. Designed for rectifying alternating current of industrial frequency 50 Hz. Durability not less than 1000 hours. Weight not more than 55 g.
Details
1. Heater voltage 5 ± 0.5 V.
2. Heater current 2 ± 0.2 A.
3. Nominal anode voltage (constant) 50 V.
4. Nominal anode current (for each diode), not less than 300 mA.
5. Limiting anode current (average value) 62 mA.
6. Limiting anode current (peak value) 375 mA.
7. The anode current at the moment of switching on is the limit (peak value) 1.25 A.
8. Rectified current (for each diode), not less than 122 mA.
9. The voltage of the secondary winding of the transformer is 2×500 V.
10. The filter capacity is 4 μF.
11. Resistance in the anode circuit 4.7 kOhm.
12. Design – glass with an octal base.
