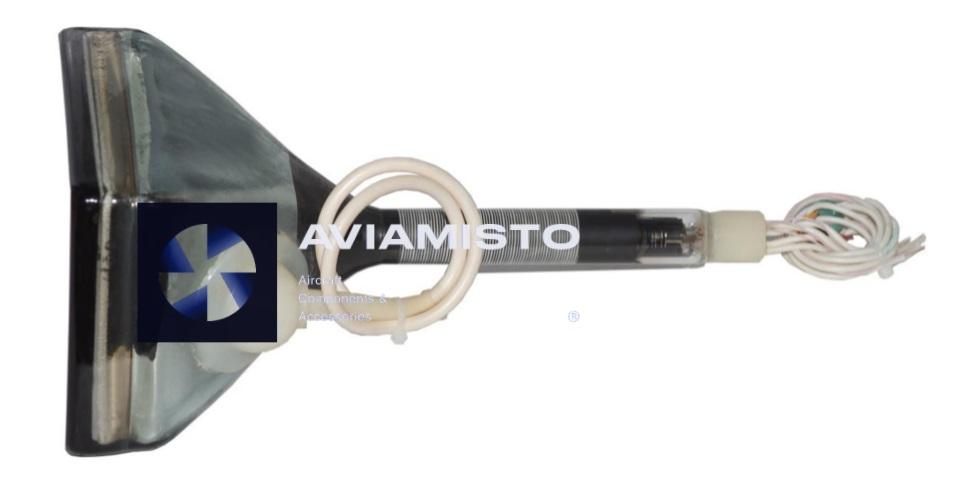

ELECTRONIC BEAM TUBE
16LM7I-2
Price on request
ELECTRONIC BEAM TUBE
Available on back-order
Description
16LM7I cathode-ray indicator tube is designed to work in systems for displaying television, sign and graphic information on a transparent glass screen in high illumination conditions, beam focusing is combined - electrostatic and electromagnetic.
Details
1. Filament current – from 0.27 A to 0.5 A.
2. Coil current – from 30 µA to 175 µA.
3. The leakage current between the cathode and the heater is 100 µA.
4. The voltage of the accelerating electrode is from 0 to 2 V.
5. Modulation voltage – no more than 75 V.
6. Ready time – no more than 2 minutes.
7. Line width:
– in the center of the screen – 0.2 mm.
– at the edge of the screen – 0.25 mm.
8. The brightness of the parasitic luminescence of the tube – no more than 2 cd / m2.
9. Uneven brightness of the screen – no more than 40%.
10. The brightness of the screen is 4000 cd / m2.
