GYRO UNIT
GA-6
Price on request
GYRO UNIT
Available on back-order
Description

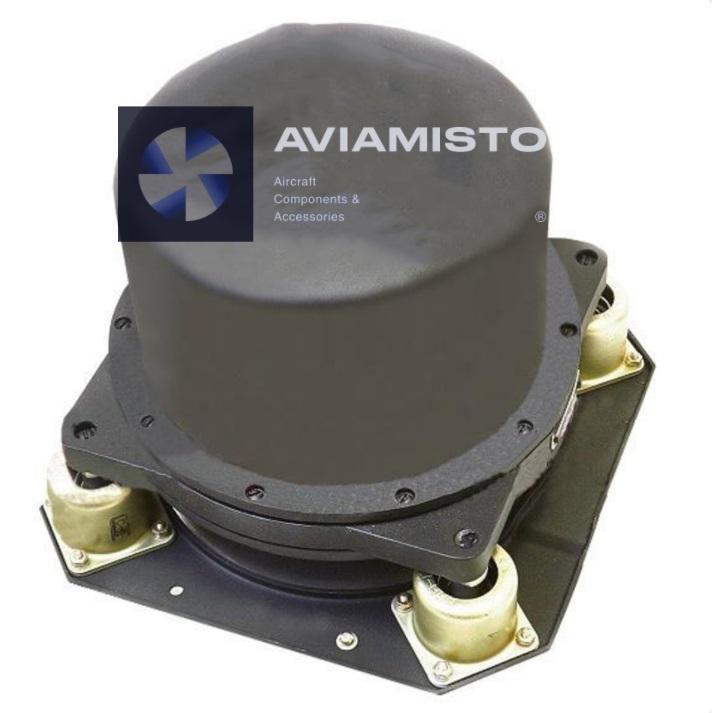

Located on the left deck of the cockpit. GA-6 is the main heading sensor. The sensitive element of the gyro unit is a three-power gyroscope with a horizontally located main axis. The gyro unit provides stabilization of the averaged value of the magnetic heading in the "magnetic correction" mode; gives the value of the orthodromic heading in the "gyro-compass" mode and gives the values of the helicopter turn angles.
Details
1.Upit = 27 V; ~ 36 V (3-phase).
2. thot in the “MK” mode – 3 min.
3. In the “HPC” mode – 5 min.
4. DMC = ± 1.50.
5. DGPK = ± 2.50 per hour of flight.
6. Vsogl (in the “MK” mode) = normal 1.5 – 7 g / min, fast at least 6 g / min.
7. Votr back of the course (in the “HPC” mode) = not less than 20 per sec.
