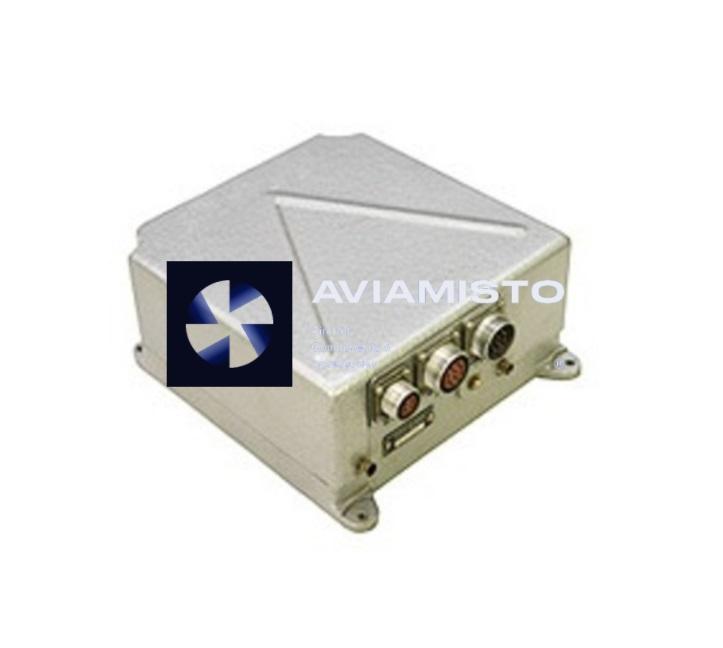

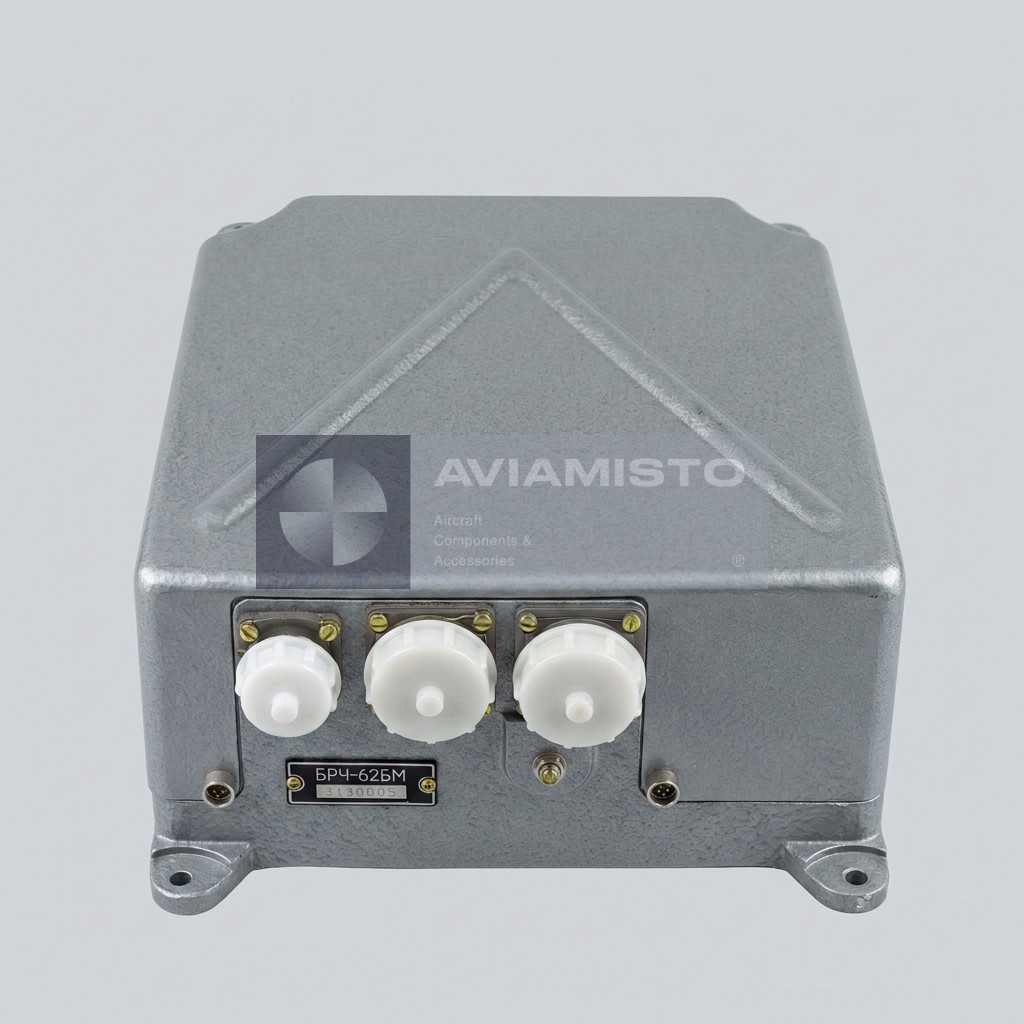

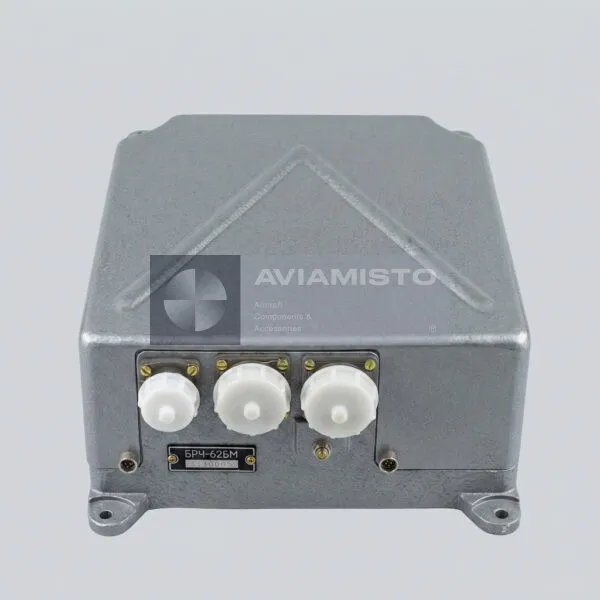

BRCH-62BM

BRCh-62BM frequency regulation unit in aircraft power systems

The BRCh-62BM is an aircraft frequency regulation unit used in onboard three-phase AC power supply systems. Its main task is to keep generator frequency close to the required 400 Hz value and support correct load sharing when generators operate in parallel. The unit is used in electrical systems where generators work through constant-speed drive equipment and must supply stable AC power to aircraft consumers. In service, the BRCh-62BM is normally considered part of the generator channel control system, not a standalone electrical box.

Frequency stabilization by the BRCh-62BM

During generator operation, the BRCh-62BM compares the actual AC frequency with the required value and forms a correction signal when frequency begins to move away from the nominal range. This signal is sent to the external frequency correction mechanism, such as the MKCh-62TV. Through this chain, the generator drive speed is corrected and the network frequency is brought back toward the normal operating value. This is important because many aircraft consumers are designed for stable-frequency 400 Hz power and may work incorrectly if frequency drift becomes excessive.

BRCh-62BM in parallel generator operation

The BRCh-62BM also participates in active power balancing between generators operating in parallel. When two or more generator channels feed the same aircraft AC network, their load must be distributed correctly. If one generator takes too much active load while another carries too little, the system becomes unbalanced and the generator channel may operate outside its intended regime. The BRCh-62BM works with active power measurement circuits to detect this mismatch and helps correct it through the frequency regulation system.

Internal units of the BRCh-62BM block

The BRCh-62BM includes several functional sections. The BICh-1M unit measures frequency deviation and uses tuned circuits to detect whether the generator frequency is above or below the required value. The BIAM-1M unit measures active power imbalance between parallel operating generators. The magnetic amplifier section increases the mismatch signal before it is sent to the correction mechanism. This internal structure allows the BRCh-62BM to handle both frequency correction and power-sharing functions within the same generator control system.

BRCh-62BM with MKCh-62TV frequency correction mechanism

The BRCh-62BM does not physically move the generator drive by itself. It sends electrical control signals to the MKCh-62TV frequency correction mechanism or similar external actuator used in the aircraft system. The correction mechanism then acts on the generator drive control system so that the generator speed and output frequency are brought into the required range. Because of this, a frequency regulation fault may come from the BRCh block, but it may also be caused by the MKCh mechanism, wiring, generator drive, constant-speed drive unit, or related control circuits.

Application of BRCh-62BM on Il and Tu aircraft

The BRCh-62BM is used in aircraft AC power systems such as SP3S4P60V-type systems and related 400 Hz generator networks. It is associated with aircraft including Il-76, Il-76MD, Il-62M, Il-78 and Tu-154 / Tu-154M, depending on aircraft modification and electrical system configuration. On these aircraft, the block works together with generator protection, voltage regulation and current-measuring equipment. Exact applicability should always be checked against the aircraft electrical system manual, parts catalog and installed generator channel configuration.

BRCh-62BM in the generator control chain

In a complete generator channel, the BRCh-62BM usually works alongside generator protection units, voltage regulation blocks, current transformer blocks, switching equipment and generator drive components. The generator produces three-phase AC power, the voltage regulation unit holds voltage, the BRCh-62BM stabilizes frequency and balances active load, while protection units decide when a generator must be connected or disconnected. For troubleshooting, this matters: unstable frequency or poor load sharing is not always caused by the BRCh-62BM alone. The whole channel must be checked.

Supply and inspection of BRCh-62BM

For procurement or replacement, the full designation BRCh-62BM should be used. The unit should be checked by condition, documentation, connector integrity, housing condition, markings, storage state and compatibility with the target aircraft system. Since it works in generator control circuits, bench testing is useful before installation. A serviceable unit should provide correct response to frequency deviation and active load mismatch. If the aircraft uses parallel generator operation, the condition of the BRCh-62BM directly affects not only frequency stability, but also the balance of active power between generator channels.

Product Type: Aircraft frequency regulation unit
Designation: BRCh-62BM
Function: Automatic stabilization of AC generator frequency and active power sharing between parallel generators
Application / Where Used: Aircraft three-phase AC power supply systems
System / Installation Area: Generator frequency regulation and parallel operation control channels
Associated Power System: SP3S4P60V-type aircraft AC power system and similar 400 Hz networks
Nominal Regulated Frequency: 400 Hz
Frequency Stability in System: Within ±2% depending on system configuration
Generator Disconnection Frequency Limits: Below 372 Hz or above 420 Hz depending on protection logic
Regulation Structure: Coarse and fine regulation channels
Associated Actuator: MKCh-62TV frequency correction mechanism
Internal Frequency Measurement Unit: BICh-1M
Internal Active Power Measurement Unit: BIAM-1M
Internal Signal Amplification Section: Magnetic amplifier unit
DC Supply Voltage: 27 ±2.7 V
Input Signal Voltage: Three-phase AC, 400 Hz, phase voltage 116.6–121.4 V
Auxiliary AC Supply: Three-phase AC, 800 Hz, phase voltage 45–51 V
Compatible Aircraft / Equipment: Il-76, Il-76MD, Il-62M, Il-78, Tu-154, Tu-154M depending on electrical system configuration
Operating Conditions: Designed for aircraft compartment operation under vibration, thermal shock and static loads
Dimensions: 234 × 203 × 100 mm
Weight: Not more than 4 kg
Technical Documentation: Product passport, bench-test documentation and aircraft electrical system maintenance documentation as applicable
