ITE-2TB2 is an aircraft tachometer indicator designed for continuous remote measurement and indication of aircraft engine shaft rotational speed during flight and ground operation. The measured rotational speed is displayed on a percentage scale relative to the maximum value and is used for real-time monitoring of engine operating modes.

The indicator operates in conjunction with engine speed sensors and is installed as part of the aircraft engine instrumentation and monitoring system. It provides reliable visual indication of engine speed parameters required for safe operation of aircraft powerplants.

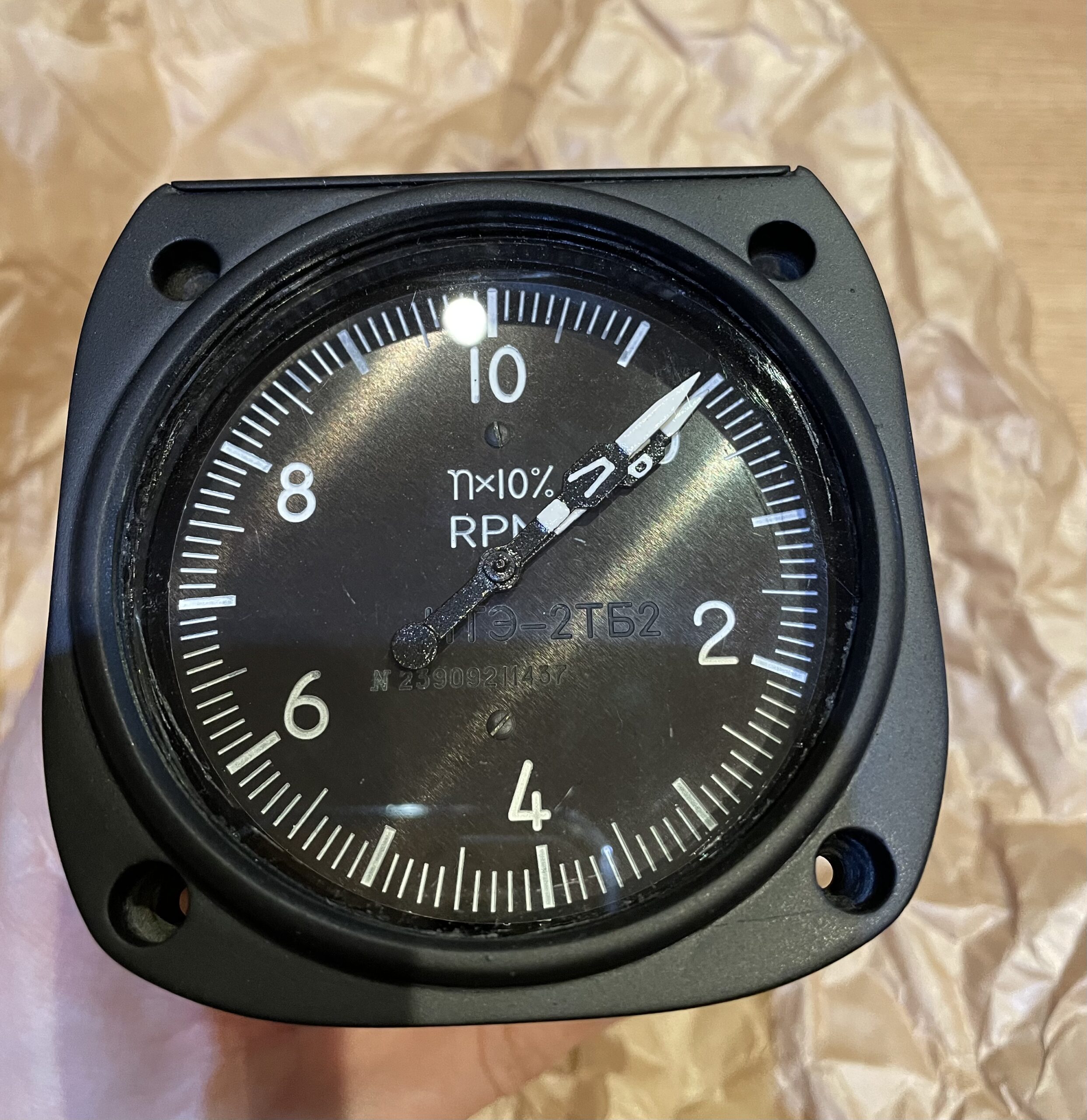

ITE-2TB2 is a dual-pointer analog instrument with two independent moving systems, allowing simultaneous indication of two shafts or two engines. The instrument is designed for operation under severe environmental conditions and maintains metrological characteristics within the specified operating temperature range.

The indicator is equipped with lamp-type dial illumination to ensure readability under low cockpit lighting conditions. Illumination is powered by a low-voltage supply and meets the power consumption limits specified in the technical documentation.

According to the manufacturer’s passport, ITE-2TB2 is interchangeable with the ITE-2TB1 tachometer indicator and complies with the applicable technical specifications when storage, transportation, installation, and operation conditions are observed.

Alternate Designations:
ITE-2TB2 may also be referenced in technical documentation, spare parts catalogs, and search queries under alternative spellings and transliterations, including: ITE2TB2, ITE 2TB2, ITE-2TB2, ITE2TB2, ITE 2TB2, ITЄ-2TB2, ITЄ2TB2, ITЄ 2TB2.
All listed designations refer to the same instrument type.

Purpose: Remote measurement and indication of aircraft engine shaft rotational speed
Systems: Engine instrumentation and engine parameter monitoring system
Application: Aircraft and helicopters equipped with engine speed sensors
Product Type: Aircraft tachometer indicator
Indication Type: Analog pointer indication, percentage scale
Number of Moving Systems: 2
Measurement Range: From 0 to 110 %
Start of Operation: From 10 %
Operating Range: From 60 % to 100 %
Accuracy (10–60 % scale): ±1.0 %
Accuracy (60–100 % scale): ±0.5 %
Accuracy (above 100 %): ±1.0 %
Pointer Oscillation and Drift: Not more than 1 mm
Dial Illumination: Lamp-type
Illumination Supply Voltage: 5.5 V
Illumination Power Consumption: Not more than 2.5 W
Operating Temperature Range: From −60 °C to +60 °C
Overall Dimensions: 86 × 86 × 200 mm
Weight: Not more than 1.3 kg
Interchangeability: Interchangeable with ITE-2TB1
Material Content: Silver 0.24 g; Aluminum 0.32 kg; Copper 0.23 kg; Cobalt 0.01 kg; Nickel 0.01 kg
Condition: As applicable
Documentation: Manufacturer passport and operating documentation available

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
