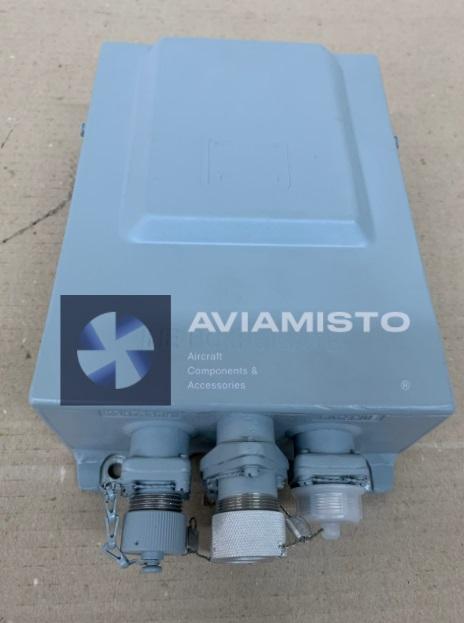

The SK-22-2K ignition unit ignites the fuel-air mixture in the combustion chambers of aircraft gas turbine engines. Provides sparking on two semiconductor candles.

1. The total resistance of wires and transition contacts is not more than 0.15 Ohm;
2. Power is supplied from a storage battery, in parallel with which a DC generator with a nominal voltage of 27V ± 10% can be connected;
3. The unit will operate normally at ambient temperatures and attachment points from minus 60 ° C to + 60 ° C;
4. Vibration-resistant and vibration-resistant when vibrating its attachment points in the frequency range up to 230 Hz with acceleration up to 5.8 g;
5. The current consumed by the unit from the power source at a voltage of 27 ± 1V and working on candles is 5 ± 2A;
6. The electrical isolation of the primary circuits of the unit relative to the casing withstands the test voltage of alternating current with a frequency of 50 Hz for one minute:
– in normal climatic conditions – 1 kV effective;
– in conditions of high humidity – 0.6 kV effective.
7. Electrical resistance of insulation of the primary circuits of the unit relative to the body:
– in normal climatic conditions – not less than 20 MOhm;
– in conditions of high humidity – at least 1 megohm;
– in high temperature conditions – not less than 5 megohms.
8. Unit weight – no more than 3.35 kg.
