START PANELS

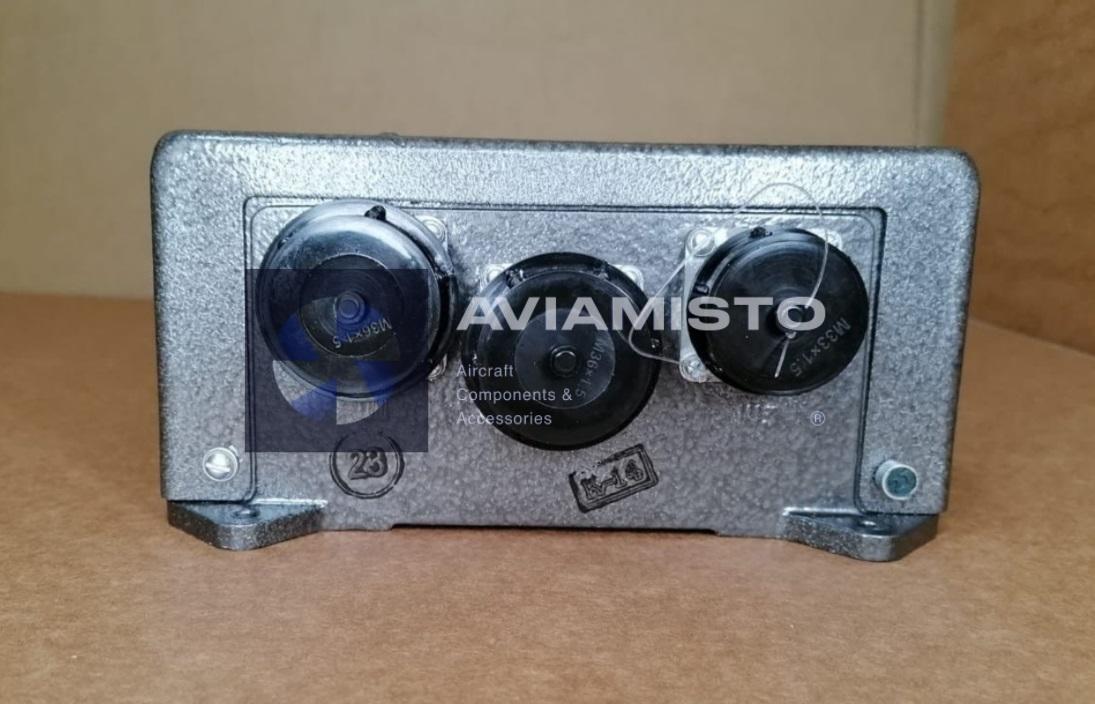

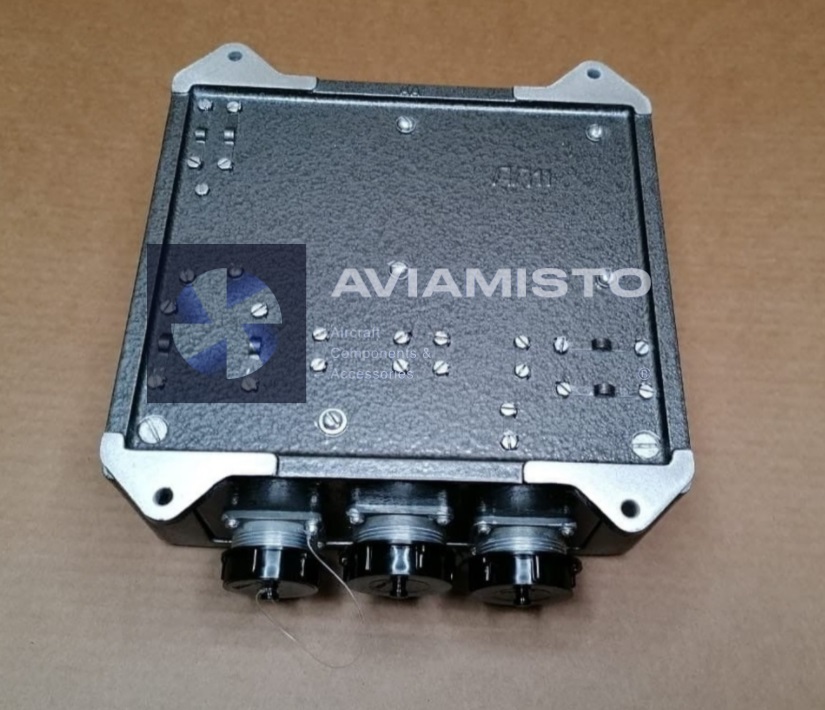

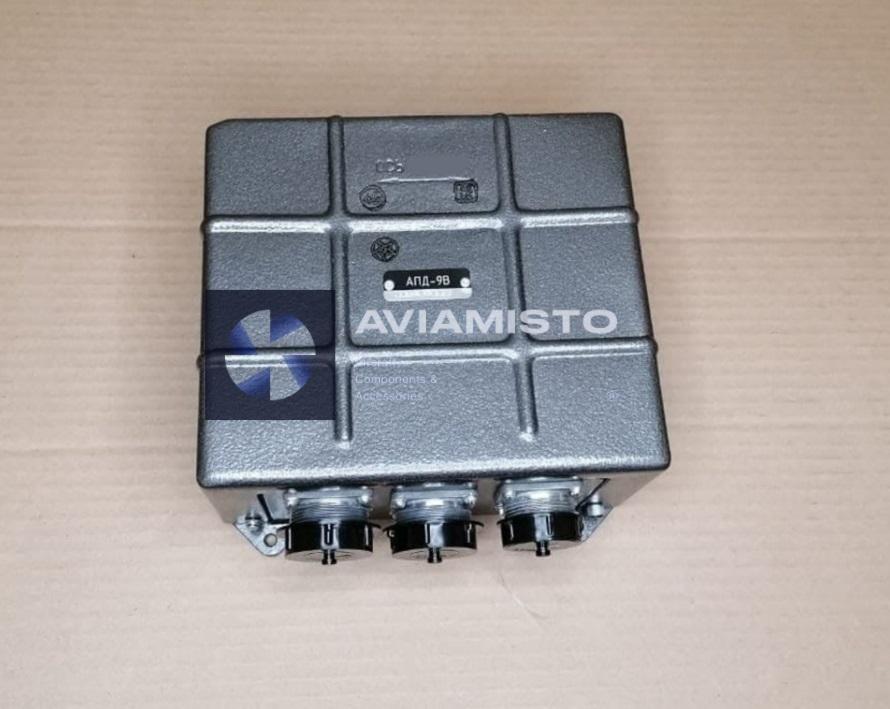

APD-9V
APD-9V
START PANELS
Available on back-order
Description
APD-9V provides software execution of the starting process (cold scrolling, false starting) according to a given program, providing automatic connection and disconnection of the starting system units. The cycle of the panel is 30 seconds, while the AUTOMATIC ENABLED board is on.
Details
1. When you press the “START” button, the APD-9V starts to work (the “AUTOMATIC ON” display lights up);
2. After 3 s, power is supplied to STG-3 through the starting resistor, starting pump, starting fuel valve and ignition unit;
3. After 6 s, power is supplied to the starting fuel supply valve to the working injectors and the HP-9V stop valve;
4. After 6.5 s, the starting resistance of the starter-generator circuit is shunted, which begins a more intensive spin of the engine rotor;
5. + – after 12 s, power is removed from the starting fuel valve, the ignition unit and the starting plug, the starting fuel supply valve to the working injectors, and the starting pump.
