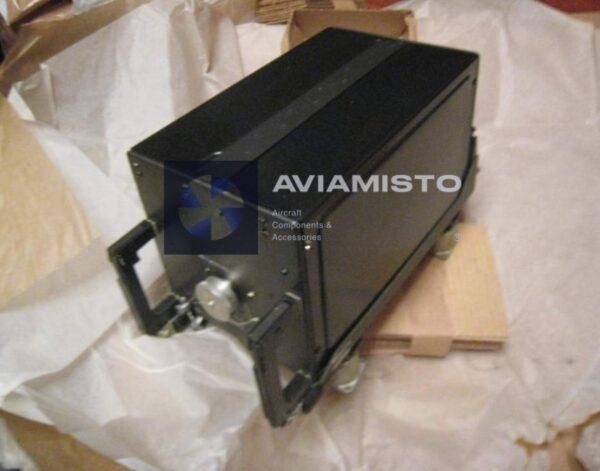

The automatic engine start-up device APD-30TA-2 is intended for electric start of the TA-12 engine in the SPTZ-12TAV system.

The machine provides:

a) starting the engine on the ground from button 1;

b) starting the engine on the ground from button 2;

c) starting the engine in the air from button 1;

d) starting the engine in the air from button 2;

e) cranking the engine during conservation and de-conservation from button 1;

f) cold cranking of the engine on the ground from button 1;

g) cold cranking of the engine in the air from button 1.

1. Supply voltage constant 27 V;

2. Supply voltage range 24-29.4 V;

3. The current consumed by the machine from the 27 V DC network, no more than 15A;

4. Range of commands by time 0… 44s;

5. Working temperature -60 … + 60 ° C;

6. Intermittent operation of the machine;

7. Overall dimensions 437x230x258mm;

8. Total weight, no more than 10.6 kg.
