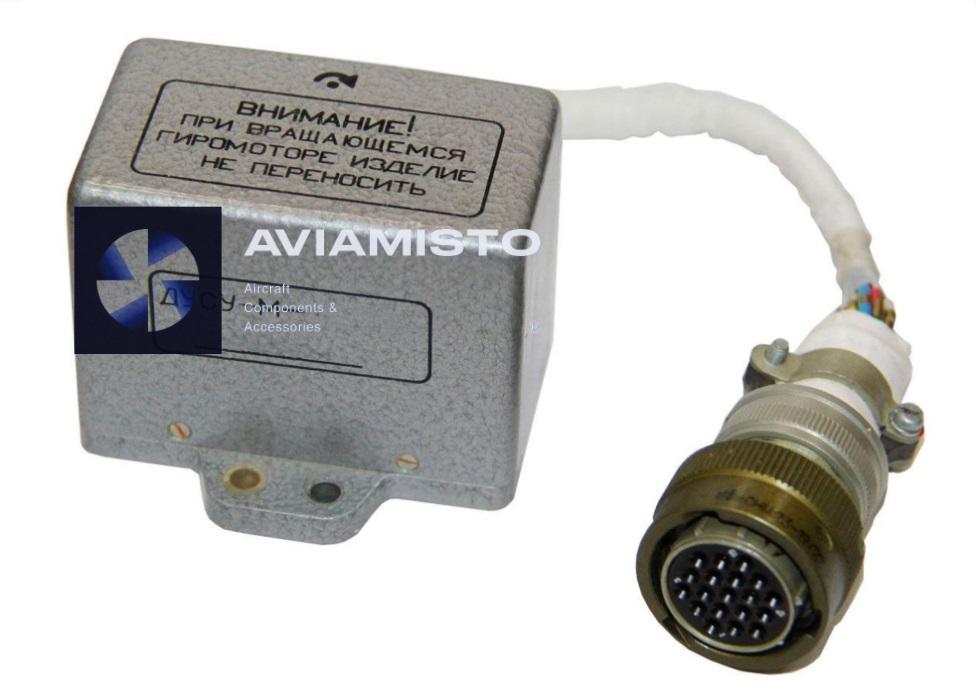

DUSU-M-18AS angular velocity sensor is designed to measure angular velocities acting along its measuring axis and output a signal in the form of a direct current voltage, the value of which is proportional to the angular velocity, and the sign to the direction of the angular velocity action.

1. Range of measurement of angular velocities – ± 18 ° / s.

2. Power supply for long-term sensors:

– three-phase sinusoidal voltage – from 32.4 V to 37.8 V;

– frequency – 400 ± 20 Hz.

3. Power supply for short-term sensors:

– three-phase rectangular voltage – 20 ± 2 V;

– frequency – 400 ± 20 Hz.

4. Power supply with direct current voltage – ± 15 ± 1.5 V.

5. Consumption currents:

– along the ± 15 V circuit – 125 mA;

– along the 20 V circuit – 0.4 A;

– along the 36 V circuit – 0.22 A.

6. Output signal on the range – ± 5 V.

7. Error of output characteristic – no more than ± 2%.

8. Threshold of sensitivity – no more than 0.02%.

9. Ambient temperature – from -60 ° С to + 70 ° С.

10. Mean time between failures:

– for short-term sensors – 1000 h;

– for long-term sensors – 10,000 hours.

11. Assigned sensor resource is:

– for short-term sensors – 200 h;

– for long-term sensors – 6000 h.

12. Service lines – 13.5 years.

13. Overall dimensions – no more than 67 × 62 × 52 mm.

14. Weight – no more than 350 g.
