Description

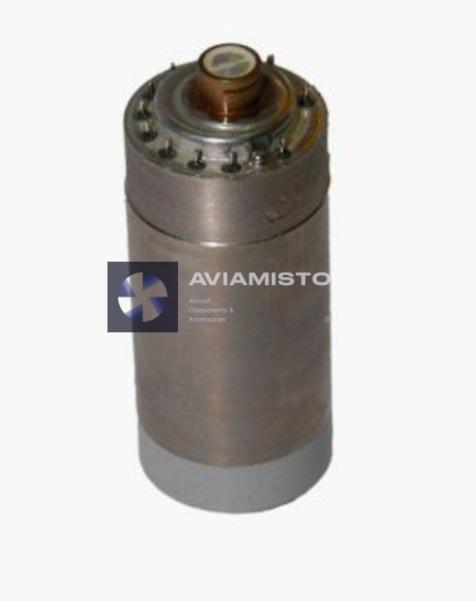

DUS-300T angular velocity sensor is designed to convert the angular velocities acting along its measuring axis into a direct current signal, the value of which is proportional to the angular velocity, and the sign corresponds to the direction of the angular velocity action.
Details
1. Sensor measurement range – ± 5.24 rad / s (± 300 º / s).
2. Time of readiness for work:
– with forced start – 4 s.
– with operating power supply from a rectangular three-phase alternating current source – 30 s.
3. Sensitivity threshold of the sensor – no more than ± 0.43 · 10-4 rad / s (± 9º / h).
4. Zero signal – no more than ± 1.45 · 10-4 rad / s (± 30º / h).
5. Drift of the zero signal – no more than ± 0.87 · 10-4 rad / s (± 18º / h).
6. Zero signal depending on g – no more than ± 1.77 · 10-5 rad / s / m / s2.
7. Operating temperature range – from -55 ° С to + 65 ° С.
8. The assigned service life is at least 13.5 years.
9. Assigned resource – at least 100 hours.
10. Weight – no more than 0.3 kg.
Payment & delivery
All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.
In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.
Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.
Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.
Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.
Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
