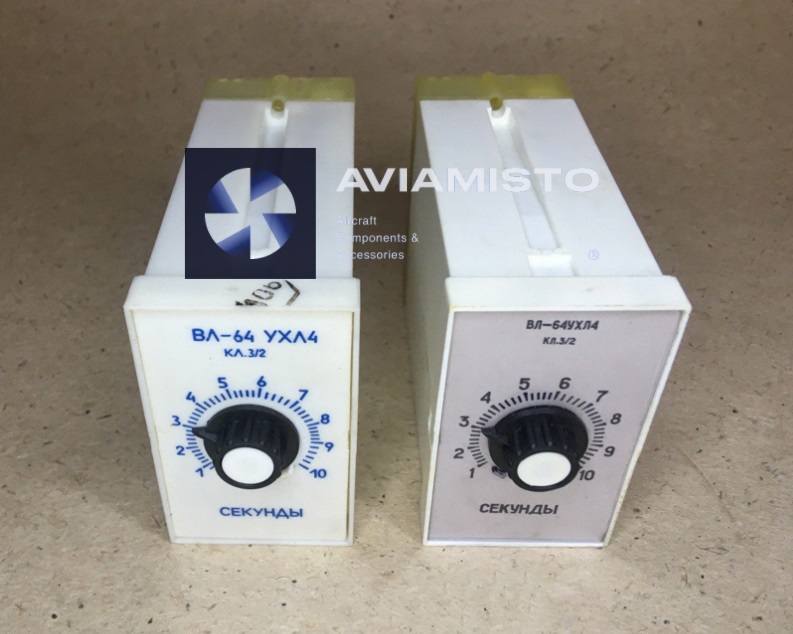

VL-64 time relays are designed for switching electrical circuits with pre-set time delays and are used in automation circuits. Operating temperature range from -40 to +55°С. Impact of vibrations with acceleration up to 1g. with a frequency of up to 100Hz, up to 2g. with frequency up to 60Hz. Degree of protection relay IP40, terminal clamps - IP00.

1. Time delay adjustment – smooth.
2. Ready time 0.3 sec.
3. Return time 0.2 sec.
4. Quantity and type of contacts 1z+1p.
5. Supply voltage (DC) 24, 27, 110, 220 V.
6. Supply voltage (AC) 110, 220, 230, 240 V.
7. Long-term permissible current of the output circuit 4 A.
8. Overall dimensions 45x75x119 mm.
9. Weight, no more than 0.22 kg.
