RELAYS ELECTROMAGNETIC LOW-CURRENT

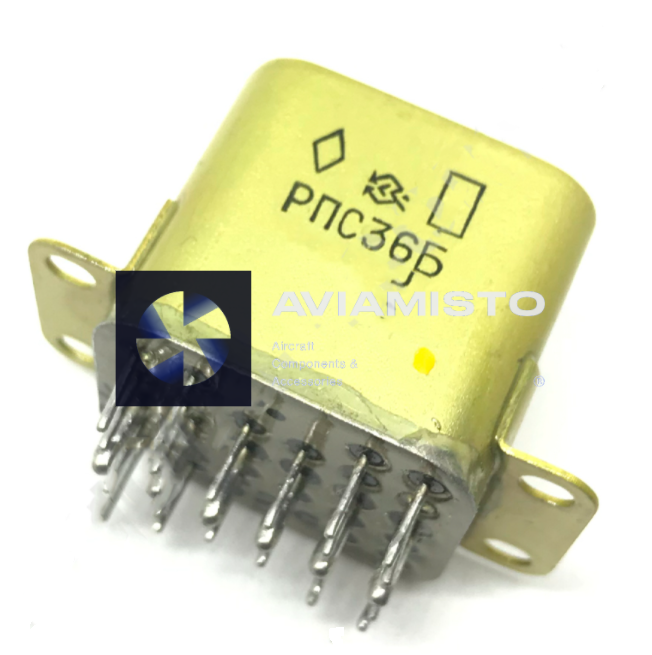

RPS36B RS4.520.268-01
RPS36B RS4.520.268-01
RELAYS ELECTROMAGNETIC LOW-CURRENT
Available on back-order
Description
Relay RPS36B RS4.520.268-01 hermetic, polarized, bi-stable, two-position, with six changeover contacts, designed for switching DC and AC electric circuits with frequency up to 1100 Hz.
Details
1. Supply current – constant.
2. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions – 200 MΩ.
at maximum temperature (after holding the winding under operating voltage) – 20 MΩ.
– in conditions of high humidity – 10 MΩ.
3. Test alternating voltage between current-carrying elements, between current-carrying elements and the case:
– in normal climatic conditions – 500 V.
– in conditions of high humidity – 300 V.
– at reduced atmospheric pressure – 180 V.
4. The total time the relay windings are energized at the maximum ambient temperature is not more than 100 hours.
5. Relay response time at minimum operating voltage 5 ms.
6. Relay weight, no more than 52 g.
