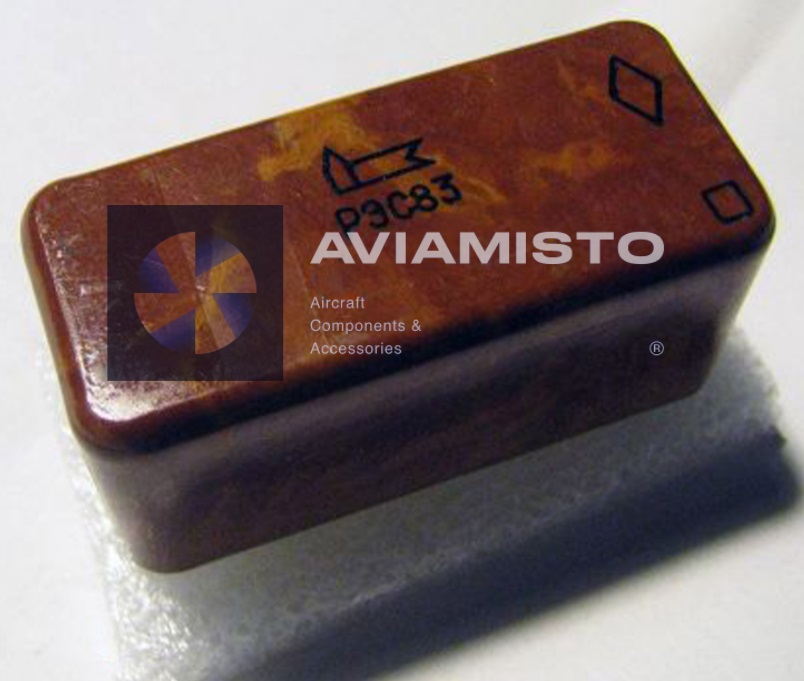

Relays RES83 RS4.569.792-02 are dust- and splash-proof, two-position, single-stable, designed for switching electrical circuits of direct and alternating current with a frequency of up to 100 kHz.

1. The supply current of the windings is constant;
2. Winding resistance 1700-2300 ohm;
3. Response voltage 8,7V;
4. Release voltage 7,4V;
5. Working voltage 13,5-16,5V;
6. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (the winding is de-energized) 5000 MΩ;
– at maximum temperature (after holding the windings under operating voltage) 20 MΩ;
– in conditions of high humidity 5 MΩ;
7. Test alternating voltage between current-carrying elements, between current-carrying elements and the case:
– in normal climatic conditions 500 V;
– in conditions of high humidity 300 V;
– at reduced atmospheric pressure 300 V;
8. The time of continuous presence of the winding under voltage at a maximum temperature of 100 hours;
9. The total time the winding is energized at a maximum temperature of 5000 hours;
10. Electric contact resistance not more than 0.25 Ohm;
11. The weight of the relay is not more than 45 g.
