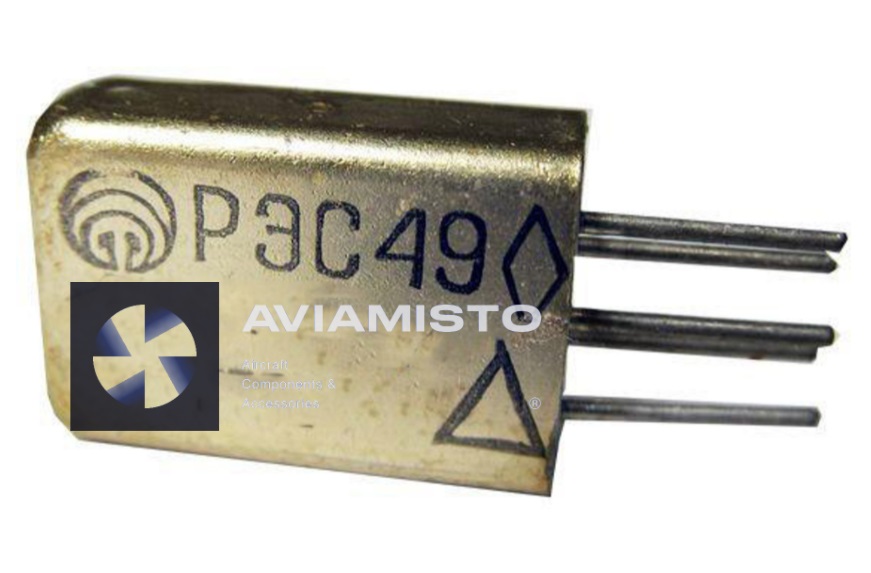

RES49 RS4.569.421-06.02 hermetic, two-position, single-stable, with one changeover contact DC relay is designed for switching DC electrical circuits.

1. Winding resistance 640-960 ohm;
2. Operate current 12.0mA;
3. Release current 2.2mA;
4. Working voltage 16-20V;
5. Insulation resistance between current-carrying elements, current-carrying elements and housing:
– in normal climatic conditions, at least 200 MΩ;
– in conditions of high humidity, not less than 10 MΩ;
– at a maximum temperature of at least 20 MΩ;
6. Electrical strength of insulation:
– between current-carrying elements 180 V;
– between current-carrying elements and the case 350 V;
7. Response time no more than 3 ms;
8. Topping time no more than 2 ms;
9. Relay weight 3.5 g.
