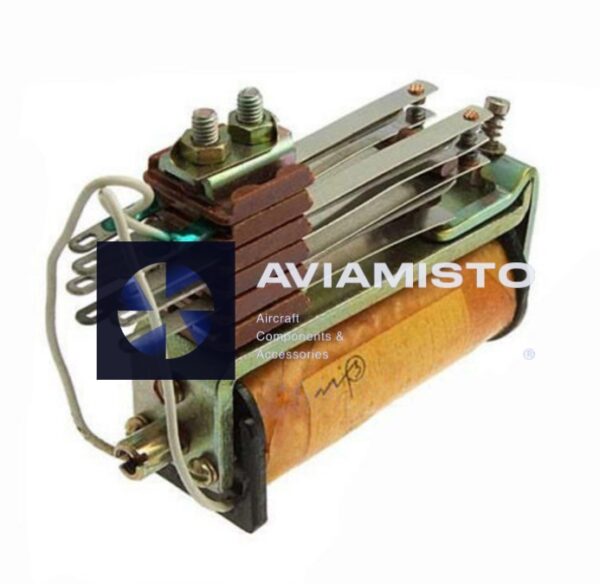

Relay REN18 РХ4.564.506 open, two-position, single-stable, designed for switching electrical circuits of direct and alternating current with a frequency of 50 Hz.

1. The supply current of the winding is constant.
2. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (windings are de-energized) – 200 MΩ.
– at the maximum positive temperature (windings under current) – 20 MΩ.
– in conditions of high humidity:
between contacts, between contacts and housing – 10 MΩ.
– between the windings, between the windings and the case – 5 MΩ.
3. Test alternating voltage:
– in normal climatic conditions:
between current-carrying elements, between current-carrying elements and the case – 1500 V.
between windings – 500 V.
– in conditions of high humidity:
between current-carrying elements, between current-carrying elements and the case – 900 V.
between windings – 300 V.
4. The total time spent by the relay (windings) under operating voltage and at a maximum temperature of 100 hours.
5. Relay electrical contact resistance
– at the stage of delivery – no more than 0.1 Ohm,
– during operation – no more than 2.5 Ohm;
– in the process of storage: under a canopy, in the manufacturer’s packaging and built into the equipment – no more than 2.5 Ohm;
– in storage conditions, in a set of spare parts, built into the equipment – no more than 1.2 Ohm.
6. The weight of the relay is not more than 340 g.
