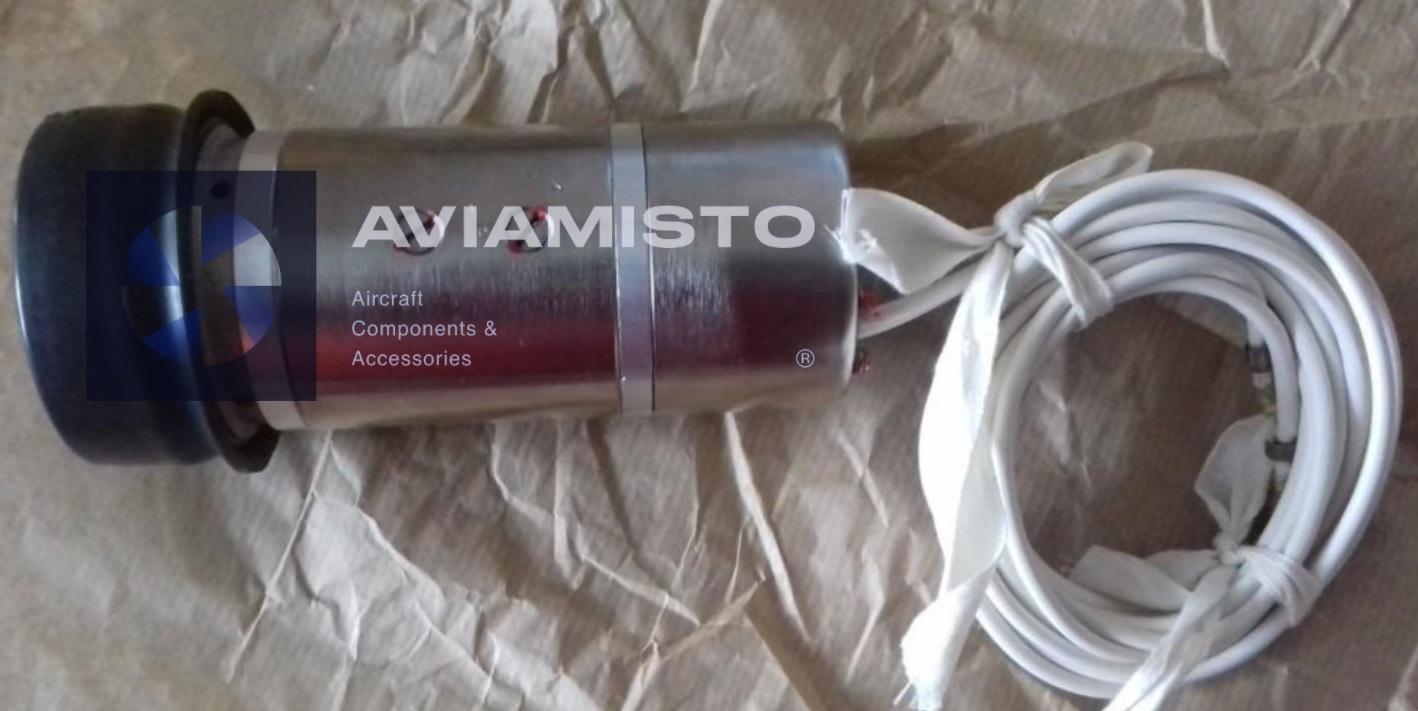

Electrically conductive centrifugal pumps ETSN-75 are designed for pumping fuel from suspended fuel tanks into a service tank. One transfer pump is installed in each suspension tank. The pump in the tank is installed in a special mounting device that prevents fuel from entering the pump electric motor. It is made in conjunction with an electric motor powered by a DC on-board network. The pump motor in the mounting device is blown with air to cool and remove fuel vapors.

1. Used fuel T-1, TS-1, RT.

2. The capacity of the fuel tanks:

– Consumable 445 liters.

– Left outboard 1140 (745) l.

– Right outboard 1030 (680) l.

3. Additional 915 liters.

4. The fuel pressure in front of the nozzles is 16-60 kg / cm2.

5. Fuel meter error (t = 20 ° C and U = 27 V) ± 5%.

6. Light up of the board “Remaining fuel 270 l 270 l ± 3%”.

7. Fuel consumption for 2 engines for transport flights is 580 kg / h.
