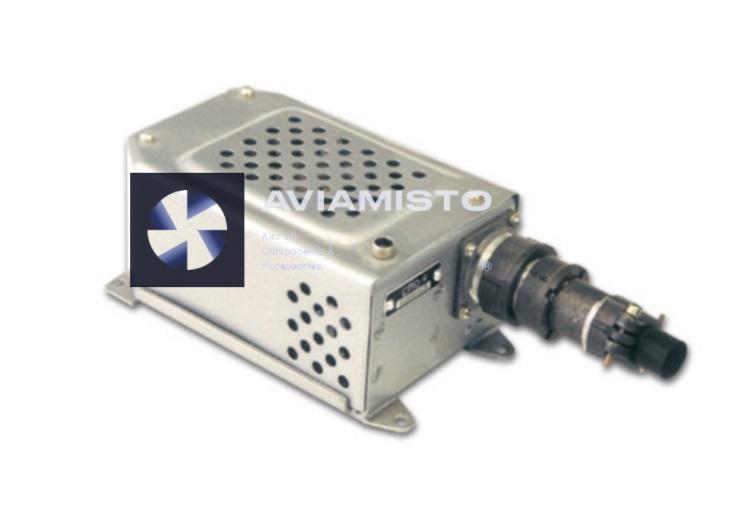

SPO-9 single-phase static converter provides conversion of 27V DC voltage into 36V AC rectangular single-phase voltage with a frequency of 400Hz.

1. Supply voltage 27V + 10% (emergency mode 22V + 2 is provided;
2. Output voltage of rectangular shape 36+ 5V (effective value of the entire voltage curve), frequency 400Hz + 2%;
3. The maximum power output at a reactive-creative load with cos.section = 0.7 and a rated supply voltage of 8VA;
4. The current consumed by the converter at a supply voltage of 22V and a given power of 8VA, no more than 0.75A;
5. Weight 0.9 kg;
6. Dimensions 200 x 88 x 67 mm.
