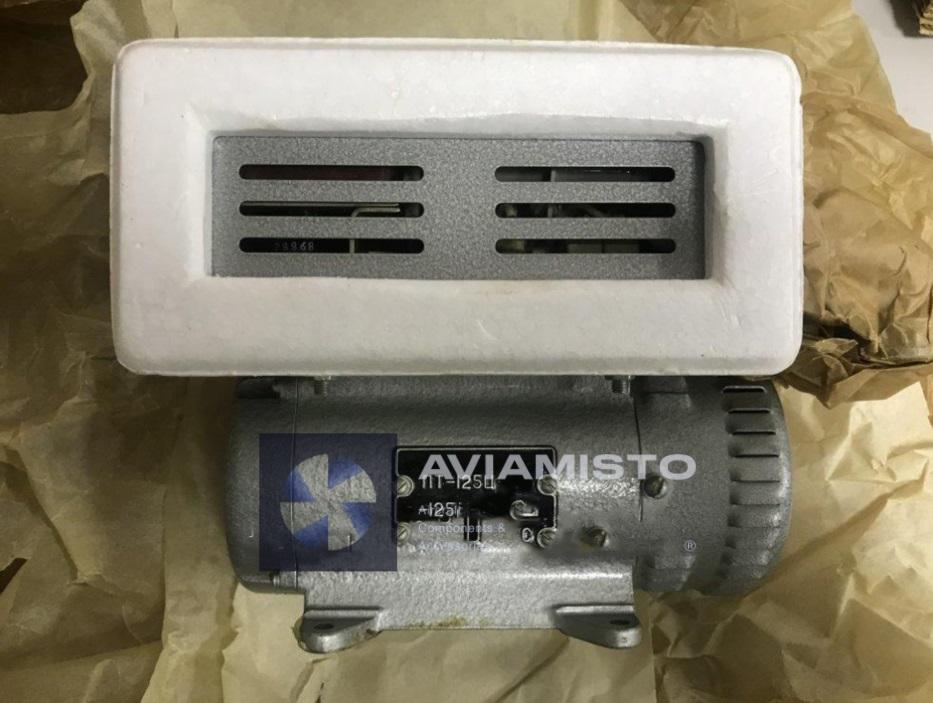

Perevoryuvach PO-250A - ser. 2 - a servant for the maintenance of electrical installations of TSU-8 and the power station PAES-2500 (EG-2500), as well as for the operation of the engine IV-41M. Perevoryuvach PO-250A is stored from the electric machine unit and control box.
The electric machine unit consists of two machines mounted in one housing, one of them is a direct current electric motor, the other is a single-phase synchronous generator.
The electric motor of the converter is made of four-pole with mixed excitation. The synchronous generator of the converter has a four-pole stationary magnetic system and a rotating rotor with two slip rings for alternating current drainage. The armature of the electric motor and the rotor of the generator are structurally made on the same shaft.

1. Supply voltage 27V;

2. Consumption current 25A (no more);

3. Output voltage 115V;

4. Number of phases 1;

5. The given power is 250V;

6. Power factor (lagging) 0.9;

7. The given current is 2.17A;

8. Frequency 400Hz;

9. Rotation speed 12,000 rpm;

10. The weight of the transducer with the box is 9kg.
