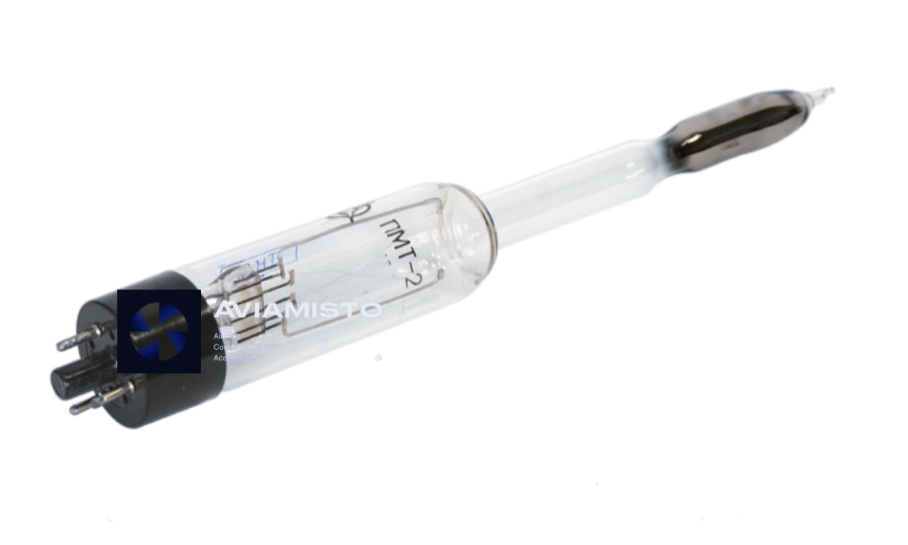

The PMT-2 manometric thermocouple transducer is designed to work with vacuum gauges VIT-1A, VIT-2, VT-2A, VT-3 or other similar devices in the pressure range from 666.6 Pa (5 mm Hg) to 1.33x10-1 Pa (1x10-3 mm Hg).

1. Working pressure range – from 10-3 mm Hg. Art. up to 5 mm Hg. Art. (from 0.133 Pa to 666.6 Pa);

2. The range of change in the EMF of the thermocouple – from 0 to 10 mV;

3. Heater current setting range – from 100 mA to 140 mA;

4. Resistance of the thermocouple – 7 ± 1 Ohm;

5. Deviation of the individual calibration curve from the typical one in the pressure range from 10-3 mm Hg. Art. up to 10-1 mm Hg. Art. – no more than ± 20%;

6. Deviation of the individual calibration curve from the typical one in the pressure range from 1 mm Hg. Art. up to 5 mm Hg. Art. – no more than ± 40%;

7. Guaranteed operating time – 500 h;

8. Overall dimensions of the PMT-2 lamp:

– diameter – 34 mm,

– height – 265 mm;

9. The diameter of the rod is 16.3 mm.
