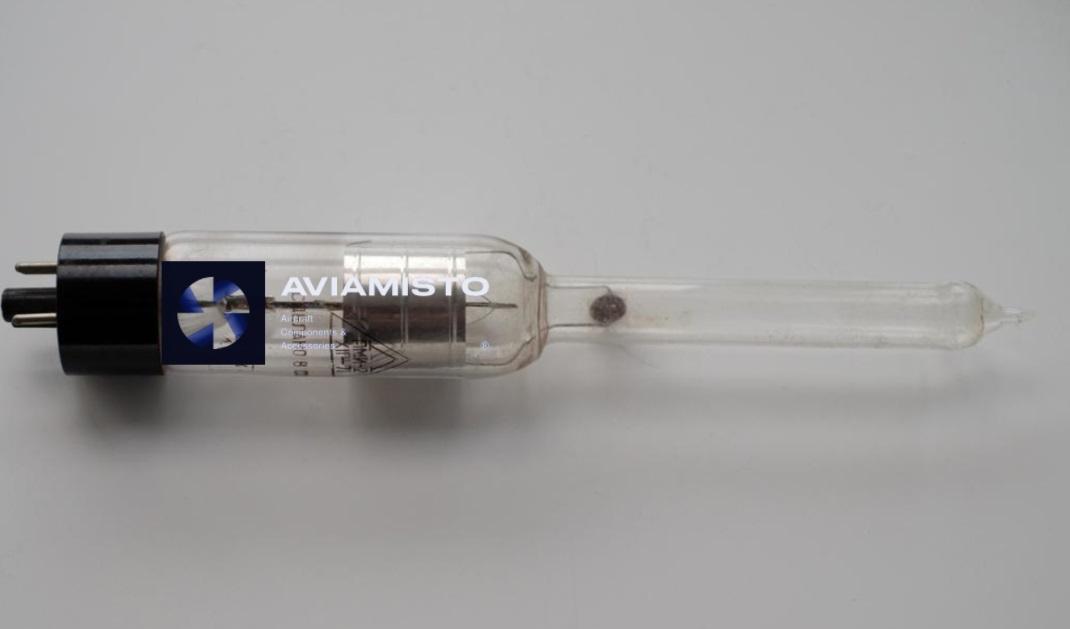

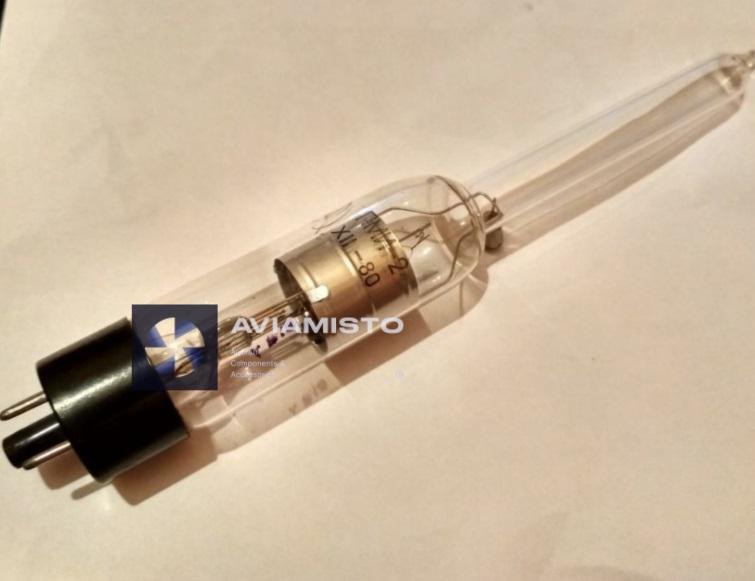

PMI-2 gauge ionization transducer converts the pressure value into an electrical signal, designed to work in conjunction with vacuum gauges or other similar devices.

1. Measurement range – from 10-3 torr to 10-7 torr (from 0.13 ∙ 10-4 Pa to 0.13 Pa);

2. The required value of the emission current is 0.5 mA;

3. Lamp body – glass C52-I;

4. Accession – “fungal” (choke);

5. Connecting diameter – 15 mm;

6. Constant C of products – converters PMI-2:

– at an emission current of 5 mA – (1.16 ± 0.23) ∙ 10-3 Pa / A,

– at an emission current of 0.5 mA – (11.6 ± 2.3) ∙ 10-3 Pa / A;

7. Working position – vertical;

8. Converter resource:

– at a pressure in the vacuum system of 0.13 ∙ 10-2 Pa – 750 h,

– at a pressure in vacuum 0.13 ∙ 10-1 Pa – 75 h,

– at a vacuum pressure of 0.13 Pa – 7.5 h;

9. Pressure in the surveyed volume to ensure safe work – no more than 0.13 Pa;

10 Guaranteed operating time – 500 h;

11. Operation at pressures from 0.13 Pa to 0.013 Pa leads to its premature failure;

12. Overall dimensions of PMI-2:

– diameter – 34 mm,

– height – 265 mm;

13. Shtengel diameter – 16.3 mm.
