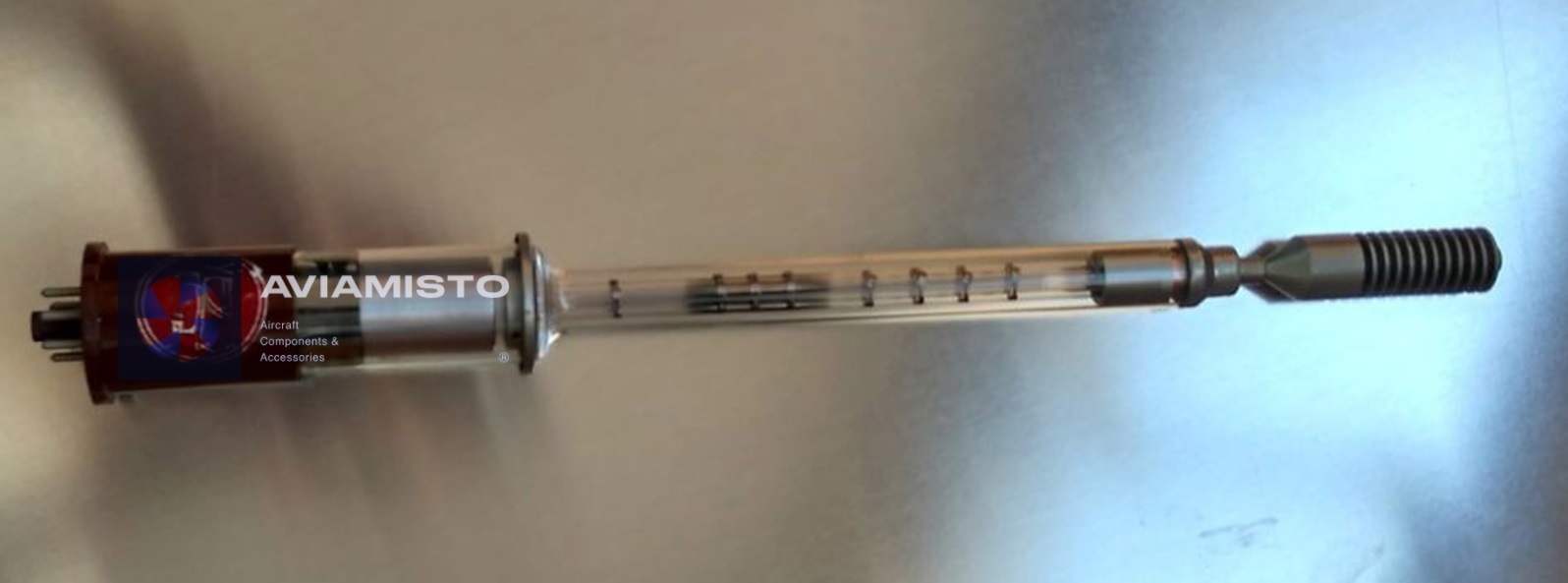

Traveling wave lamp UV-229-1 for operation in microwave devices at frequencies of 3.4-4.2 GHz.

1. Glass construction.
2. Air cooling method.
3. Frequency range 3.4-4.2GHz.
4. Output power 6W.
5. The voltage of the retarding system is 1.5-1.75 kV.
6. Heating voltage 6.3 V.
7. Glow current 1.9-2.6 A.
8. The current of the completer is 0.5 mA.
9. Dimensions 360x256x40 mm.
10. Weight 0.35 kg.
11. Durability 5000 hours.
12. Waveguide energy output.
