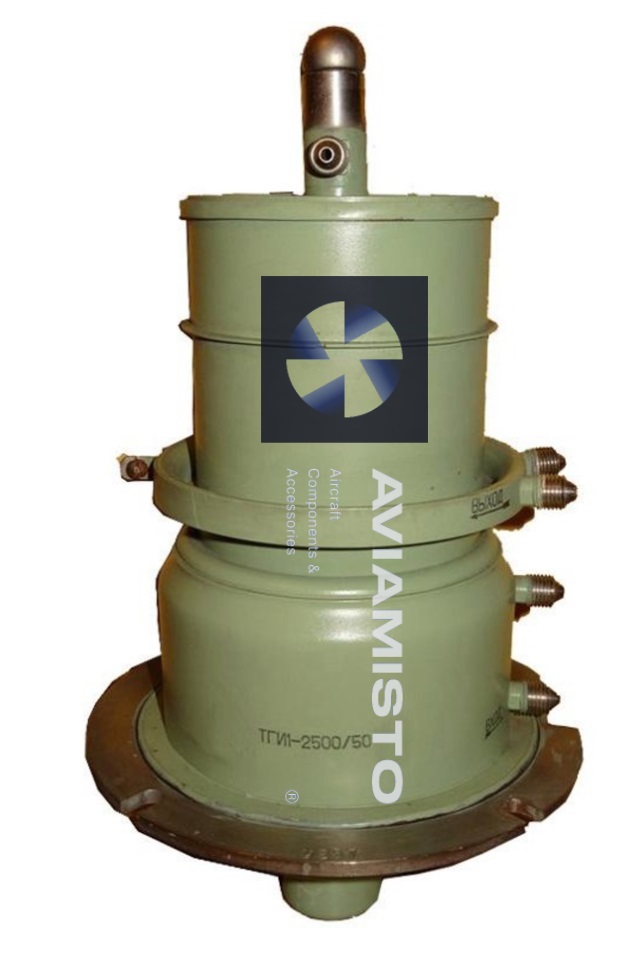

TGI1-2500/50 pulse modulator thyratron is designed for use as a switching device in a linear modulator.

1. The heating current of the hydrogen generator is 2.6 A.

2. Anode current, pulse amplitude – 2500 A.

3. Anode current, average value – 4 A.

4. The delay time of the anode current pulse with respect to the grid voltage pulse is from 0.2 μs to 0.5 μs.

5. Periodic ignition instability – no more than 0.005 μs.

6. Voltage drop between the anode and cathode – no more than 250 V.

7. Durability – not less than 2000 hours.

8. Cathode heating time – no more than 6 min.

9. Heating voltage – from 6 V to 6.6 V.

10. Anode direct voltage – from 10 kV to 50 kV.

11. Reverse anode voltage – no more than 40 kV.

12. Pulse data in the anode circuit:

– repetition rate – no more than 400 imp/s;

– duration – no more than 30 μs;

— front rise steepness — no more than 7000 A/μs.

13. Mesh firing pulse parameters:

– voltage amplitude – not less than 1200 V;

– current in the grid circuit – at least 12 A;

– pulse duration – from 3 μs to 10 μs;

— steepness of the rise of the front — from 2500 µs to 5000 µs.

14. Operating ambient temperature – from -60 ° С to + 85 ° С.

15. Dimensions:

— length — 320 mm;

— diameter — 82 mm.

16. Weight – no more than 8 kg.
