Quartz halogen lamp
KGSM 27-200-1
KGSM 27-200-1
Quartz halogen lamp
Remote Stock
Description

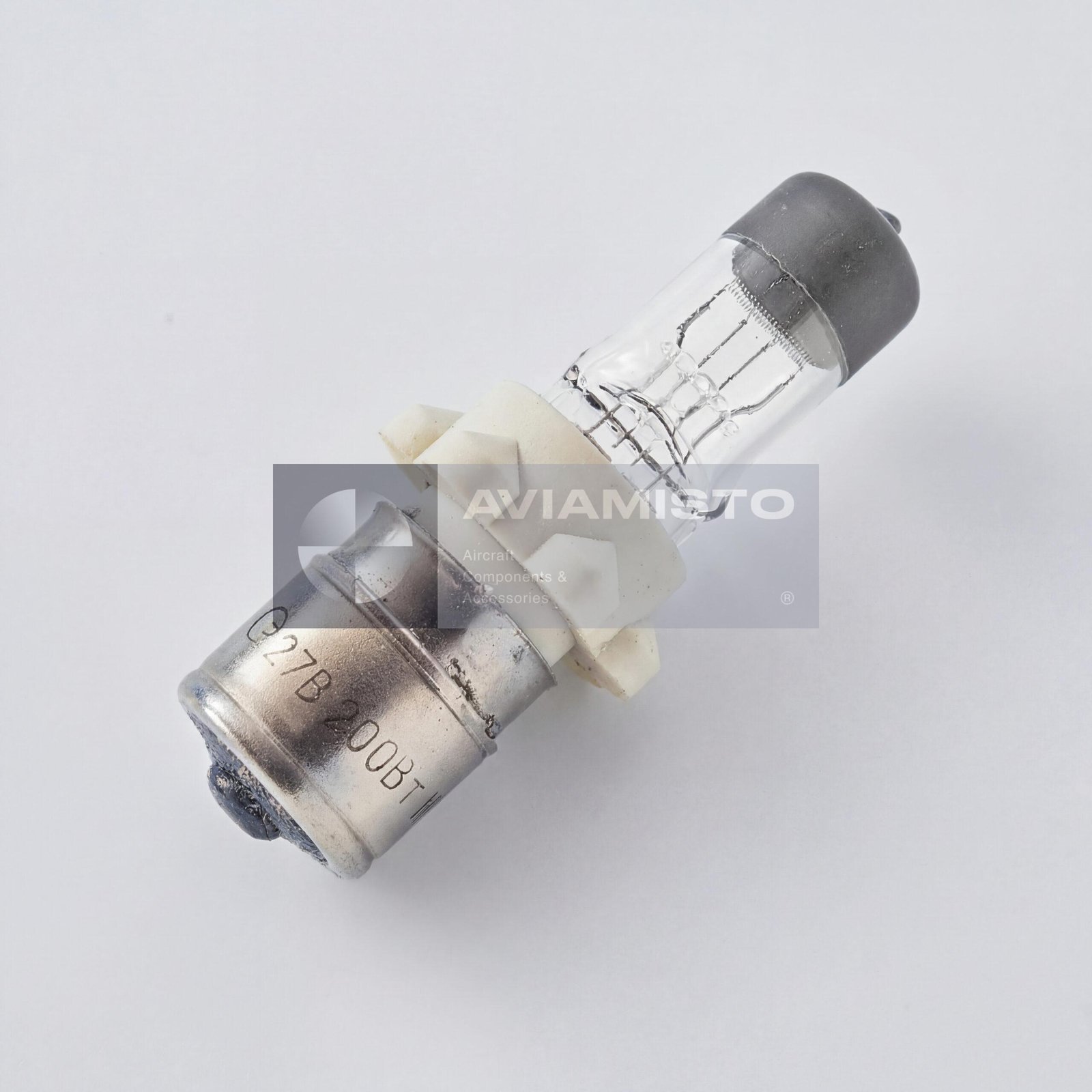

The KGSM 27-200-1 is a miniature quartz halogen aircraft incandescent lamp designed for use in onboard lighting and aeronautical navigation systems of aircraft and helicopters.
Within onboard electrical and lighting systems, the lamp serves as a high-intensity light source intended for reliable operation under aviation environmental conditions.
The lamp is applied in aircraft and helicopter aeronautical equipment, as well as for illumination of cockpits and cabins, where compact and mechanically robust light sources are required.
The product is also known under alternative designations 1F-S34-1 and P28s/24, which refer to the same product type.
Details
Product Type: Quartz halogen aircraft lamp
Function: High-intensity illumination for onboard lighting and navigation equipment
Application / Where Used: Aircraft and helicopter onboard lighting and aeronautical equipment
Operating Voltage: 27 V
Power Consumption: 200 W
Rated Service Life: Not less than 100 h
Base Type: Special base (1F-S34-1 / P28s/24)
Technical Documentation: Technical specification for lamp KGSM 27-200-1
