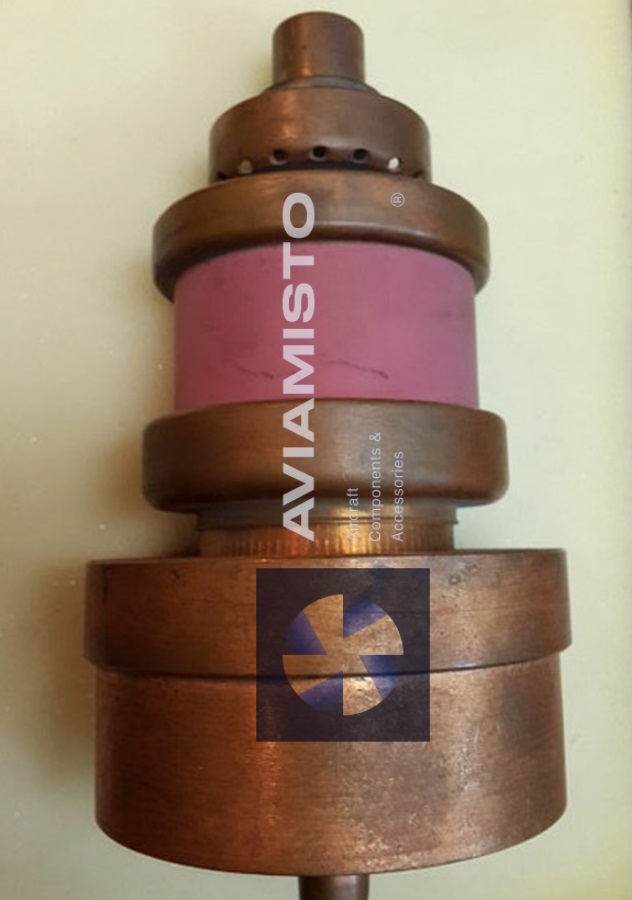

Generator tetrode GU-96B is designed to amplify high-frequency power in stationary radio engineering devices of wide application up to 4 kW at frequencies up to 85 MHz. The cathode is directly heated. Decoration - metal-ceramic. Cooling - forced air.

1. Heating voltage 6 V.
2. Glow current 60-75 A.
3. Anode current, not less than 2.9 A.
4. Locking voltage is negative, absolute value, not more than 130 V.
5. Slope 20-28mA/V.
6. Interelectrode capacitances:
– grid – anode, no more than 25 pF,
– grid – cathode, no more than 45 pF,
— anode — cathode, not more than 1 pF.
7. The highest heating voltage is 6.3 V.
8. Weight no more than 4.5 kg.
