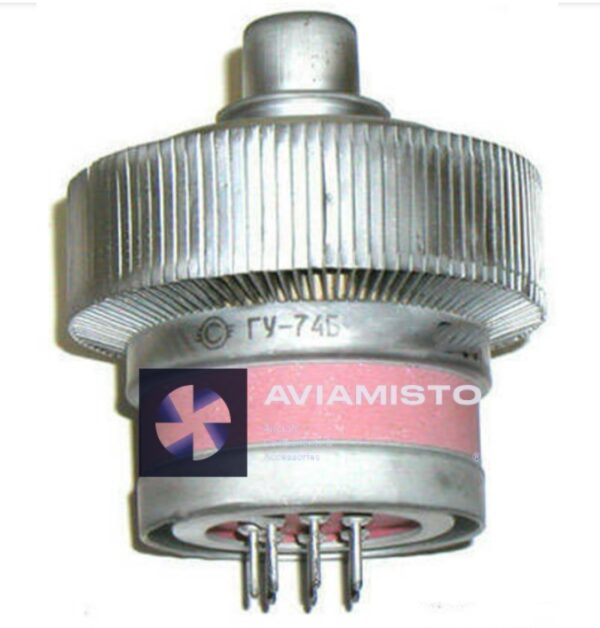

Generator tetrode GU-74B for operation in non-tunable single-sideband radio transmitters and amplification of a single-sideband signal at frequencies up to 60 MHz. Decoration - metal-ceramic. Cooling - forced air 35 m3/h.

1. Filament current 3.6 ± 0.3 A.
2. The bias voltage of the 1st grid is negative 24±6V.
3. Anode current (at Uа=250 V, Uс1=0), not less than 1400 mA.
4. Current of the 2nd grid (at Uа=250 V, Uс=0), no more than 360 mA.
5. Current of the 2nd grid, no more than 20 mA.
6. The current of the 1st grid is reverse, not more than 50 μA.
7. Slope, 32 ± 6 mA/V.
8. The gain of the 1st grid relative to the 2nd grid is 6.5 ± 2.
9. Ready time, no more than 2.5 minutes.
10. Interelectrode capacitances:
– input 51 ± 5 pF,
– output 11 ± 2 pF,
– through passage no more than 0.09 pF.
9. Heating voltage 11.9 – 13.3 V.
10. Durability – not less than 1000 hours.
11. Weight: 550 g.
