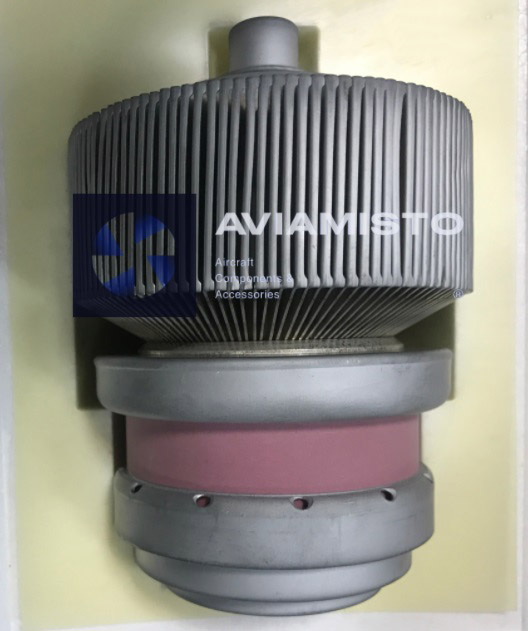

Generator tetrode GU-73B for amplifying a single-sideband signal at frequencies up to 250 MHz. The design is ceramic-metal, with ring electrode leads. Cooling - forced air 150 m3/h.

1. Filament current 4.85 ± 0.25 A.
2. Current of the 2nd grid, no more than 80 mA.
3. Slope 92.5 ± 27.5 mA/V.
4. The gain of the 1st grid relative to the 2nd grid is 5 ± 2.
5. The grid locking voltage (at Uа=4 V, Iа=20 mA) is negative, not more than 120 V.
6. Ready time, no more than 3.5 minutes.
7. Vibrational power class AB1, not less than 2.5 kW.
8. Interelectrode capacitances:
– input 155 ± 15 pF,
– output 22.5 ± 3.5 pF,
– throughput not more than 0.2 pF.
9. Heating voltage 24.7 – 27.3 V.
10. Durability – not less than 1000 hours.
11. Weight: no more than 2.5 kg.
