GU-70B
GU-70B
LAMPS
Available on back-order
Description

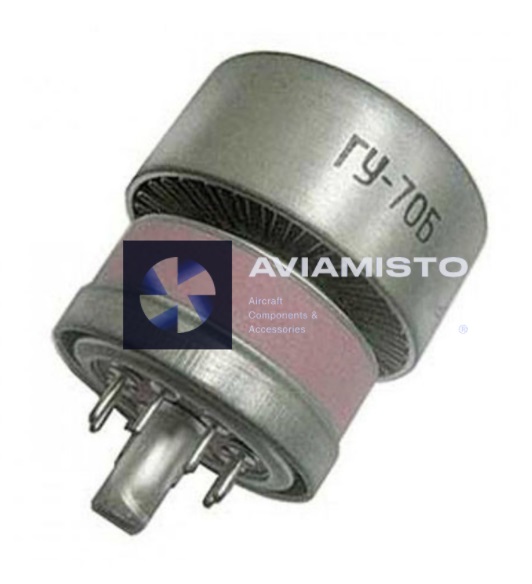

The generator tetrode GU-70B in ceramic-metal design with an indirectly heated oxide cathode and an external anode with forced air cooling is designed to amplify a single-sideband signal with an output power of up to 250 W, as well as to amplify power at frequencies up to 250 MHz and with an output power of up to 125 W in stationary and mobile radio engineering devices for industrial purposes. Decoration - metal-ceramic.
Cooling - air, forced 45 m3 / h.
Details
1. Filament current 3.1 ± 0.5 A.
2. The voltage of the 1st grid is negative 20 ± 5 V.
3. Current of the 2nd grid, no more than 18 mA.
4. Gain factor of the 2nd to 1st grid 13.5 ± 4.5.
5. Slope 22 ± 6 mA/V.
6. Cathode heating time, no more than 60 s.
7. Vibrational power, not less than 250 W.
9. Interelectrode capacitances:
– input, no more than 29 pF,
– output, no more than 7.5 pF,
– through passage, no more than 0.06 pF.
10. Heating voltage 5.7 – 6.3 V.
11. Durability, not less than ≥ 1000 hours.
12. Weight: 150 g.
