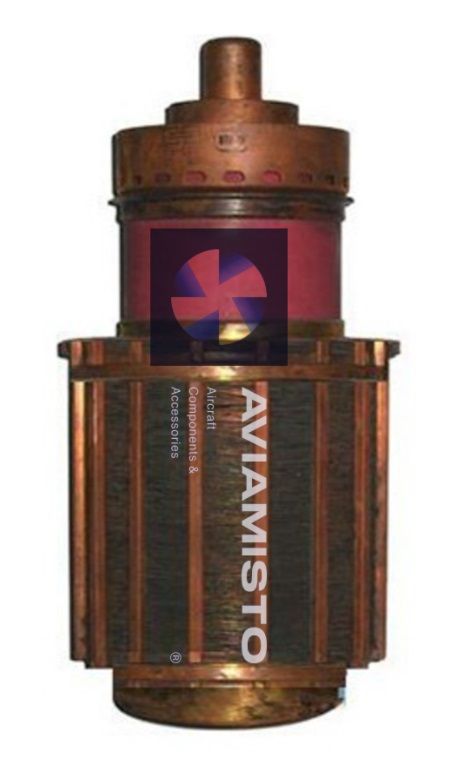

They are used in broadcasting transmitters and installations for HDTV welding, induction heating. Water cooling of the anode. Metal-ceramic design. Directly heated, calibrated, tungsten, carbide cathode.

1. Heating voltage 14V.
2. Heating current 250A.
3. Constant voltage at the anode 10 kV.
4. Power dissipated by the anode 35 kW.
5. Power dissipated by grid 1 – 1300W.
6. Maximum frequency 30MHz.
7. Output power 100KW.
8. Frequency 25 MHz.
9. Length 420 mm.
10. Diameter 198mm.
11. Weight 23 kg.

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
