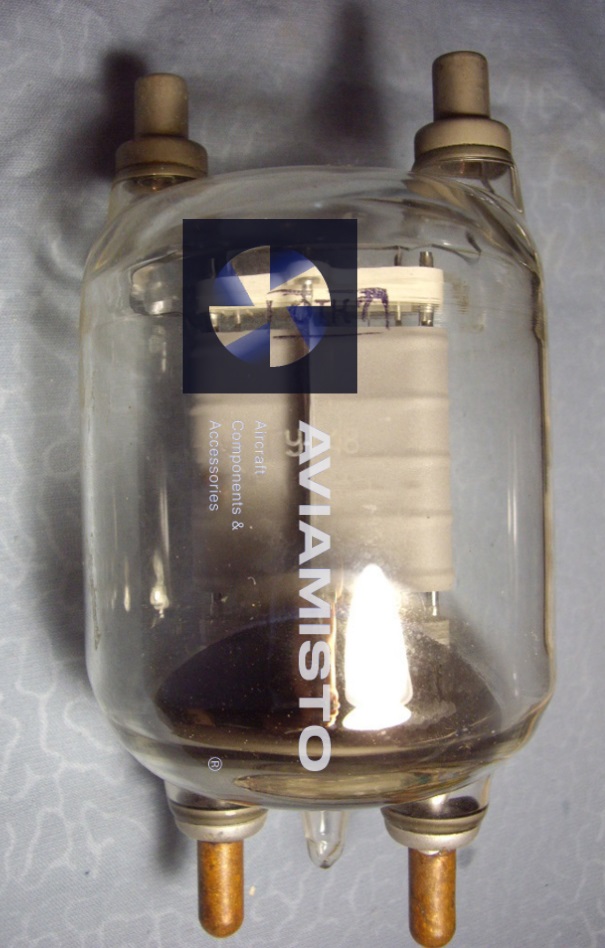

Generator triode GU-48 for operation as a generator of high-frequency oscillations in industrial installations for high-frequency heating. Decor is glass.
The working position is vertical, with the grid and anode outlets up.
Cooling - natural or forced air.

1. Filament current 10 ± 0.8 A.
2. Anode current (at Uс1= -50 V) 130 ± 70 A.
3. Anode current (at Ua=0.1 kV, Uс1=100 V) 700 ± 200 mA.
4. Grid current (at Ua=Uc1=100 V) 215 ± 85 mA.
5. Reverse grid current (at Ia=150 mA), no more than 25 μA.
6. Gain (when Uc changes by 20 V, Ia=200 mA) 35 ± 6.
7. Vibrational power (at Ic1=95 mA, at a frequency of 40 MHz), not less than 700 W.
8. Weight 850 g.
9. Heating voltage 9.5 – 10.5 V.
11. Power dissipated by the anode 300 W.
12. Operating ambient temperature range from -60 to +70 C.
13. Durability, not less than 1000 hours.
