LAMPS

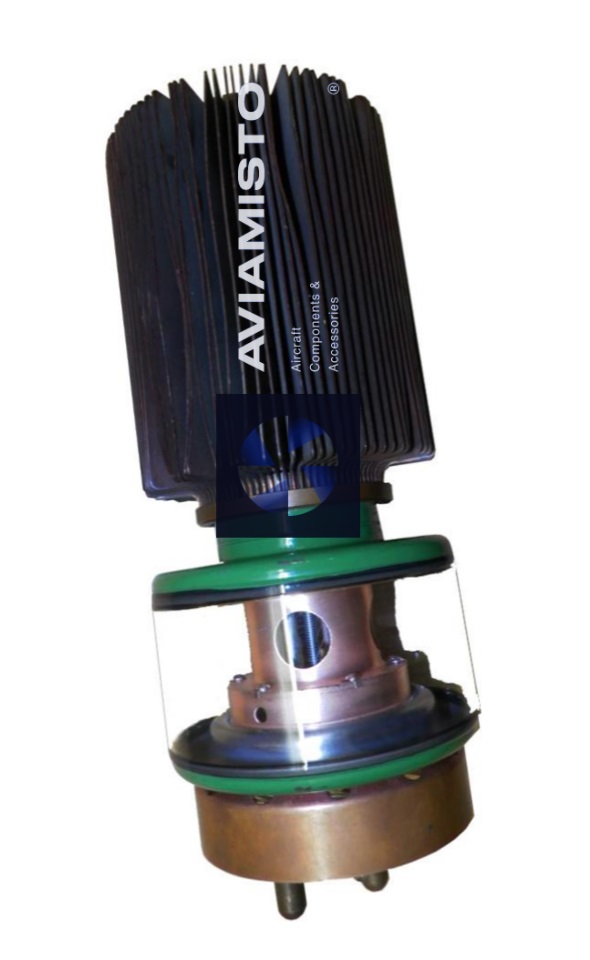

GU-10B
GU-10B
LAMPS
Available on back-order
Description
The powerful generator triode GU-10B is designed to operate as an amplifier or generator of high-frequency oscillations at frequencies up to 25 MHz in common grid circuits or in circuits with neutralization.
Decoration - glass-metal.
Working position - vertical.
Cooling - forced:
— anode — air not less than 800 m3/h.
- cylinder - air at least 60m3 / h.
— legs — air not less than 60 m3/h.
Details
1. Filament current 75 ± 5 A.
2. Anode current (at Ua=5 kV, Uc=0) 0.9 ±0.3 A.
3. Anode ion current (at Ua= -500 V, Ia=2.5 A), not more than 50 μA.
4. Grid reverse current (at Uс= -300 V), not more than 300 μA.
5. Cathode emission current (at Ua=1000 V), not less than 15 A.
6. Vibrational power, not less than 110 kW.
7. Slope 20 ±5 mA/V.
8. Gain 50±5.
9. Interelectrode capacitances:
– input, no more than 40 pF,
– output, no more than 24 pF,
– through passage, no more than 1.5 pF.
10. Heating voltage 7 – 7.3 V.
11. Operating ambient temperature range from -60 to +70 C.
12. Weight – 6 kg.
13. Durability – not less than 1000 hours.
