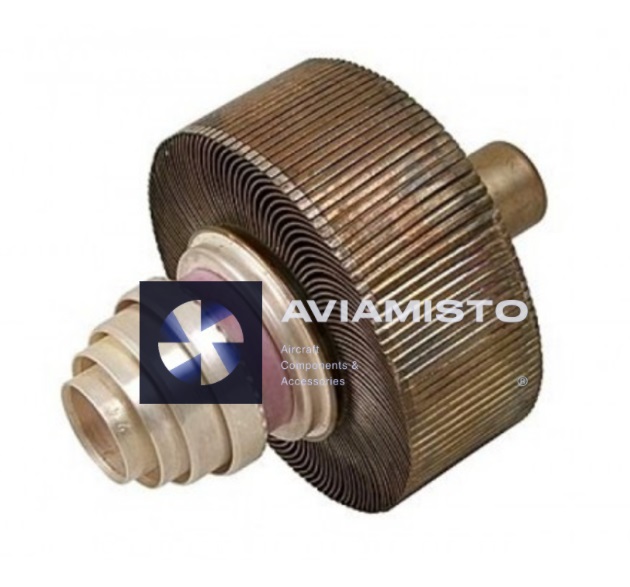

Ceramic-metal generator tetrode GS-17B. Designed to amplify power and generate microwave oscillations in the frequency range up to 1000 MHz. The design is ceramic-metal, with ring leads of the cathode and grids.
Details
1. Filament current 160 ± 12 A.
2. The resistance of a non-heated cathode is 0.0025 Ohm.
3. Cathode emission current (at Ua=Uc1=Uc2=500 V), not more than 30 A.
4. Anode current (at Ua=1 kV, Uc2=0.6 kV), no more than 2.5 A.
5. Vibrational power in amplification mode (Uа=1.5 kV, Uс2=300 V, l=30 cm), not less than 160 W.
6. Current of the 2nd grid (at Ua=1 kV, Uc2= 0.6 kV), not less than 0.4 A.
7. The closing voltage of the 1st grid is negative (at Ua=5 kV, Ia=0.1 A), not less than 170 V.
8. The steepness of the characteristic (at Ia=2 and 4 A), no more than 55 mA/V.
9. The gain of the 1st grid relative to the 2nd grid is 9 ± 1.5.
10. Power gain, no more than 5.
11. Vibrational power, no more than 4.6 kW.
12. Interelectrode capacitances:
– input 55 ± 5 pF,
– output 22.5 ± 1.5 pF,
– pass-through, no more than 0.05 pF.
13. Heating voltage 3.1 – 3.5 V.
14. Anode temperature 250 C.
15. Weight – no more than 6.6 kg.
16. Durability – not less than 1000 hours.
