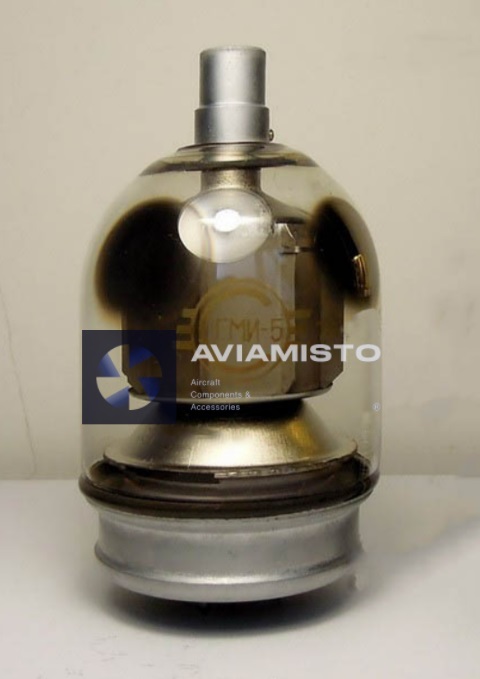

Pulse modulator tetrode GMI-5 for operation in pulse modulators. Decoration - glass, baseless. Cooling - natural or forced air.

1. Filament current 1.75 ± 0.15 A.

2. Anode current in a pulse, not less than 1.6 A.

3. Anode current in a pulse (at Un=23.5 V), not less than 14 A.

4. Current of the 1st grid 1.75 ±0.15 mA.

5. Current of the 2nd grid 2.75 ±12.25 mA.

6. The blocking voltage of the 1st grid is negative, not more than 800 V.

7. Interelectrode capacitances:
– input 57.5 ± 17.5 pF,

– output 8.5 ± 4.5 pF,

– throughput not more than 0.5 pF.
8. Heating voltage 23.5-28.5 V.

9. Ambient operating temperature range
from -60 to +70 С.

10. Weight – 300 g.
