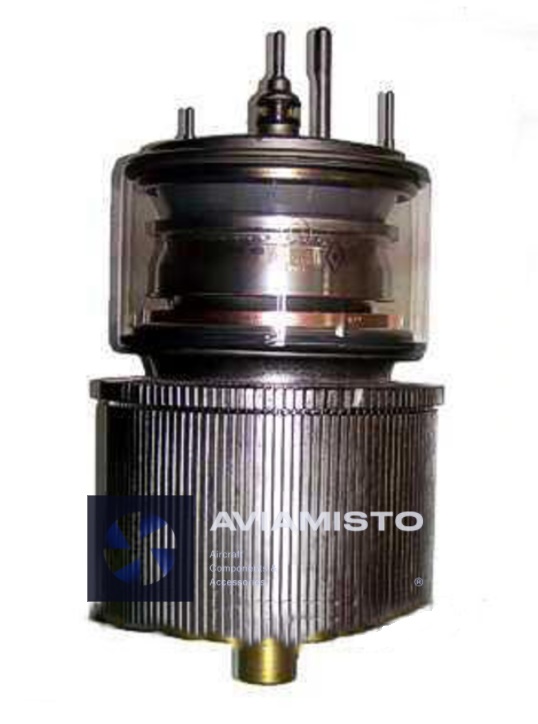

GMI-29B-1 modulator pulse tetrode is designed for operation in pulse modulators.

1. Glow current – 69.5 ± 3.5 A.

2. Heating voltage – 12.6 V.

3. The anode current in the lamp pulse is not more than 8 A.

4. Voltage:

– the second grid in the pulse – 2 kV;

– the first grid in the pulse – (-1.1) kV.

5. Current at filament voltage 230 V:

– the second grid in the pulse – no more than 8 A;

– the first grid in the pulse – no more than 15 A.

6. The turn-off voltage of the first grid is negative at an anode voltage of 33 kV and anode current per pulse of 1 mA – no more than 950 V.

7. Interelectrode capacitances of the tetrode:

– input – no more than 290 pF;

– output – no more than 55 pF;

– through passage – no more than 2.5 pF.

8. Ready time – no more than 5 minutes.

9. Durability – not less than 500 hours.

10. Design – glass-to-metal with an external anode lead.

11. Cooling – forced air.
