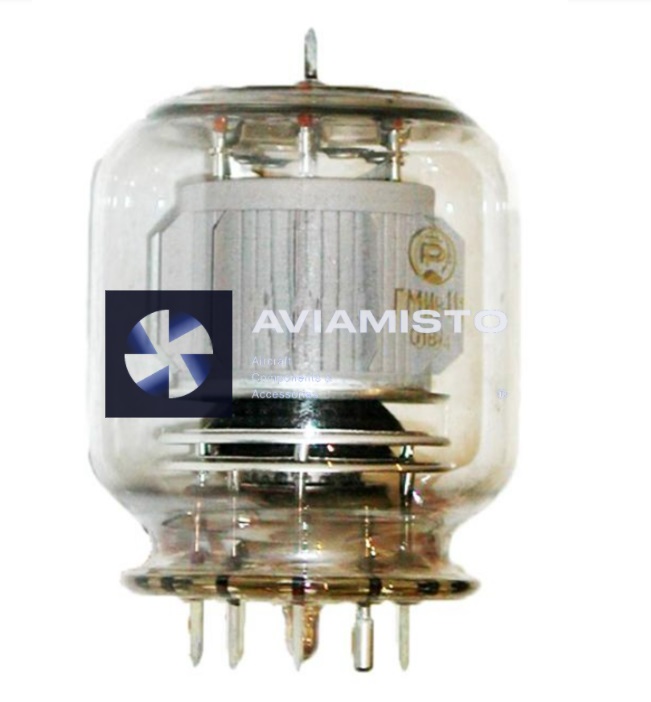

Pulse generator tetrode GMI-11 for operation in pulse modulators. Cooling - natural or forced air. Weight - 300 g.

1. Filament current 1.75 ± 0.15 A.
2. The anode current in the pulse is not less than 14 A.
3. Anode current in a pulse (at Un=23.5 V) not less than 12 A.
4. The current of the 2nd grid in the pulse is not more than 2.5 A.
5. The reverse current of the 1st grid (at Un=28.5 V, Uc2=0.6 kV, Ua=1 kV) is not more than 100 μA.
6. The current of the 1st grid in the pulse is not more than 2 A.
7. Negative locking voltage (at Ua=10 kV, Ia=0.2 A) no more than 600 V.
8. Interelectrode capacitances:
– input 55 pF,
– output 7.5 pF,
– through passage no more than 1 pF.
9. Durability not less than 300 hours.
10. Heating voltage 23.4 – 28.6 V.
11. Lamp bulb temperature 250 C.
12. Ambient operating temperature range
from -60 to +85 С.
