GM-3B
GM-3B
LAMPS
Available on back-order
Description

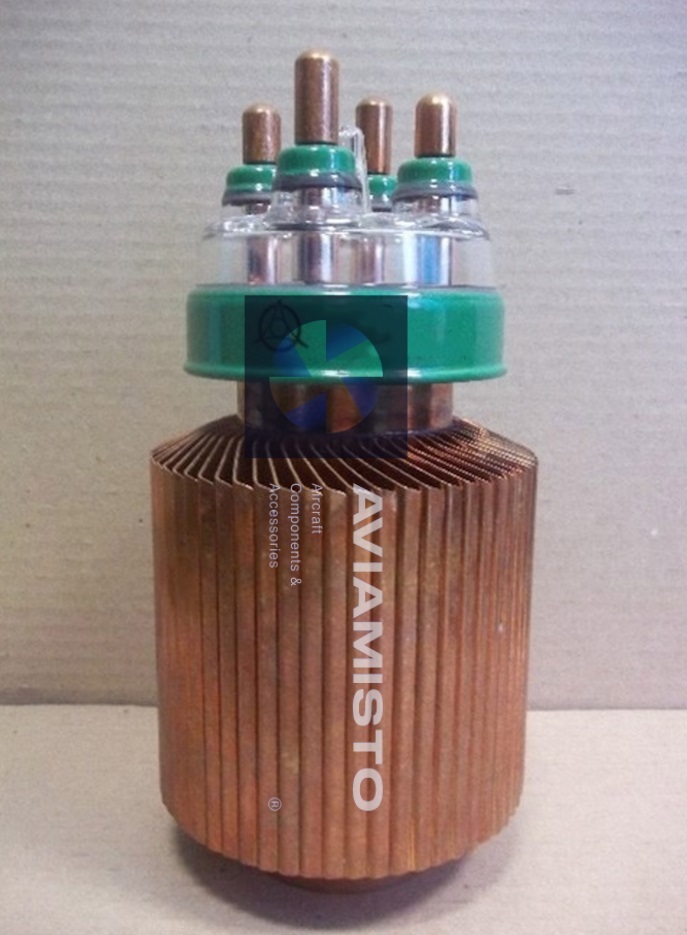

Powerful modulator triode GM-3B. Designed to amplify low-frequency oscillations in cathode-coupled circuits in stationary radio engineering devices. Decoration - glass-metal. Working position - vertical. Anode cooling - forced, air (at the outlet air temperature not more than 25 C) 800 m3/h. Weight - 4 kg.
Details
1. Filament current 150 ± 10A.
2. Anode current (at Ua=1.5kV, Uc=0) 3 ± 0.6A.
3. Anode current in a pulse (at Ua=3kV, Uc=0) 8 ± 2A.
4. Emission current per pulse (at Ua=Uc=1kV), not less than 25A.
5. Reverse grid current (at Pa=7.5kW Ua=6kV), not more than 0.3mA.
6. Slope 22 ± 5 mA/V.
7. Gain 9 ± 2.
8. Anode current cutoff voltage (at Ua=4.5kV, Ia=0.5A), no more than 600 V.
9. Interelectrode capacitances:
– grid-cathode, no more than 30 pF,
— anode-cathode, no more than 4 pF,
– grid-anode, no more than 30 pF.
13. Heating voltage 6.0-6.6 V.
14. The temperature of glass and metal junctions with glass is 150 °C.
