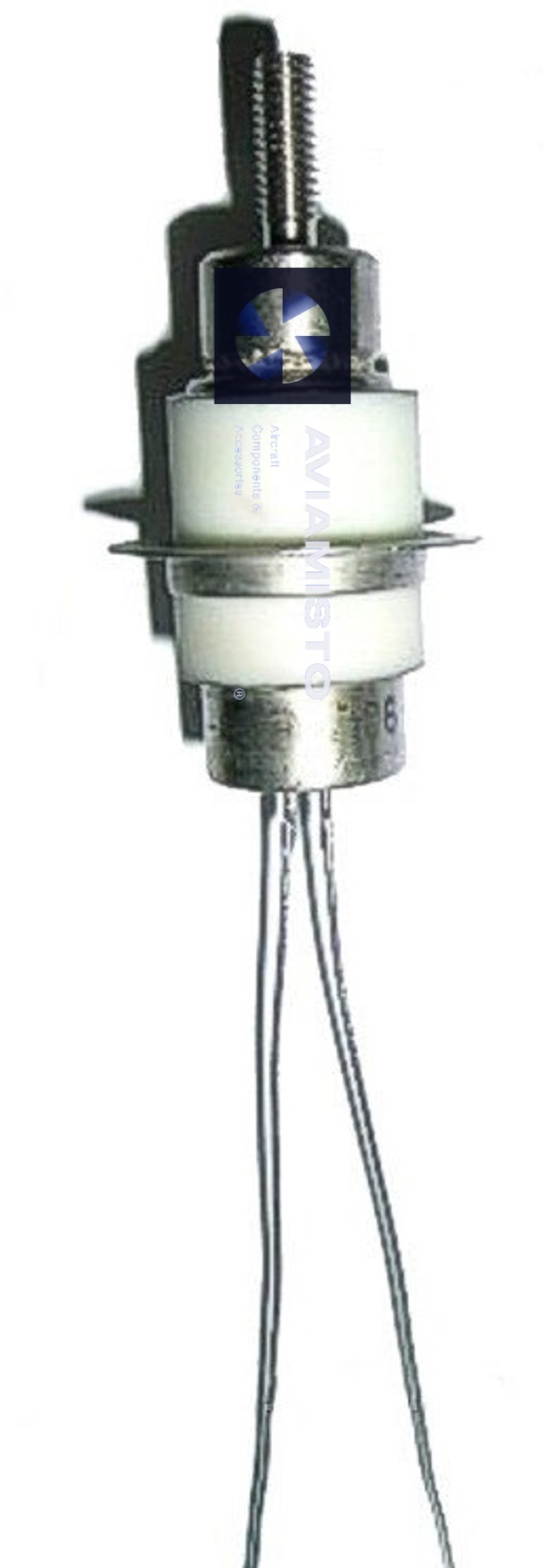

Generator triode GI-48 for generating oscillations and amplifying power. Design - cermet, with disc leads for electrodes and flexible leads for heater. Weight - 19 g.

1. Filament current 415 ± 55 mA.

2. The voltage at the operating point is negative 90 ± 30 V.

3. The slope of the characteristic is 10 mA / V.

4. The gain is 30 ± 10.

5. Time of readiness, no more than 20 s.

6. Oscillatory power per pulse, not less than 1 kW.

7. Interelectrode capacities:

– input 6.7 pF,

– output, no more than 0.17 pF,

– passable 3.6 pF.

8. Heater voltage 5.7 – 7 V.

9. The power dissipated by the anode is 15 W.

10. The range of ambient operating temperatures is from -60 to +125 C.
