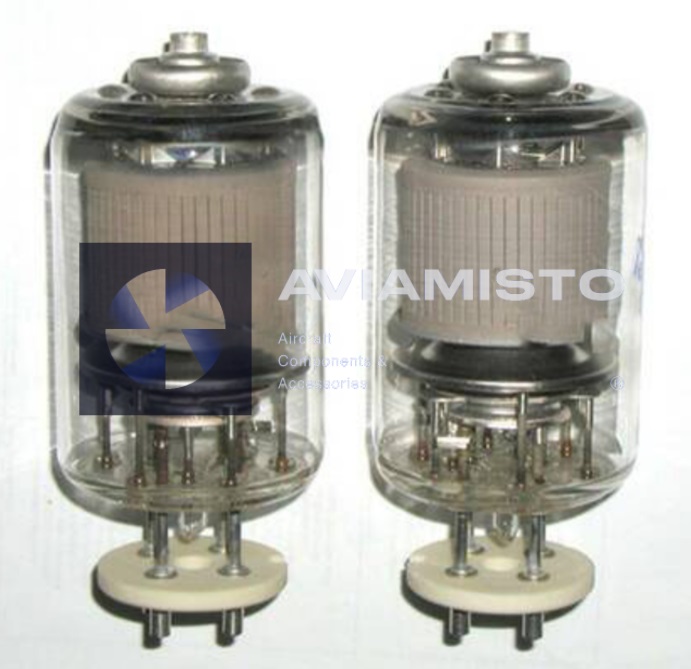

Pulse generator double beam tetrode GI-30 for modulating high-frequency oscillations in pulsed installations. Decoration - glass, baseless. Working position - vertical, balloon up. Durability - not less than 1000 hours. Weight - 125 g.

1. Heater current 1.125 ± 0.125 A.

2. Heater current (at Un = 6.3 V) 2.25 ± 0.125 A.

3. Anode current 58.5 ± 23.5 mA.

4. Anode current in a pulse, not less than 8.1 A.

5. Current of the 2nd grid, no more than 10 mA.

6. Leakage current between the cathode and the heater, no more than 175 µA.

7. The current of the 1st grid is reverse (at Uа = 400 V, Uс1 = -100 V), no more than 4 μA.

8. Closing voltage 1st negative 55 V.

9. Interelectrode capacities:

– input, 15 ± 2 pF,

– output, 7 ± 2 pF,

– checkpoint, no more than 0.1 pF.

10. Heater voltage 11.3-13.9 V.
