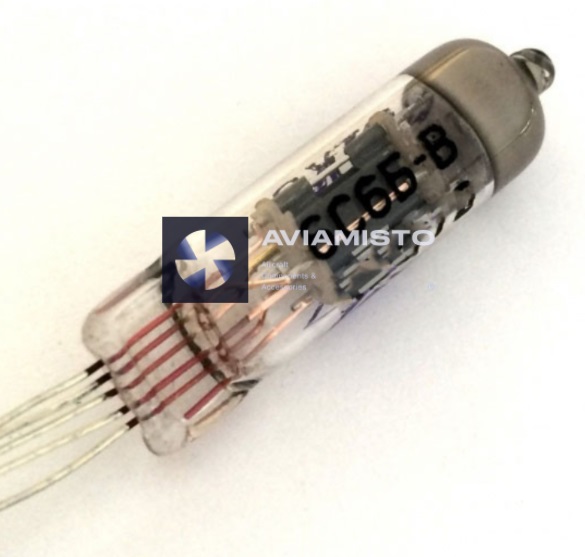

Lamp 6S6B-V is a subminiature glass triode of increased reliability and mechanical strength. Designed to amplify low frequency voltage, generate high frequency oscillations and to operate in a pulsed mode. Indirectly heated oxide cathode. Works in any position. Produced in miniature glass design. Durability not less than 1500 hours. Weight not more than 3.5 g.

1. Heater voltage 6.3 V.
2. Heater current 200 ± 20 A.
3. The voltage at the anode is 120 V.
4. The current in the anode circuit is 40 ± 12 mA.
5. The slope of the characteristic is 5 mA / V.
6. The bias voltage on the grid is -2 V.
7. Gain 25.
8. Input impedance at a frequency of 5 MHz is about 16 kOhm.
9. The highest filament voltage is 6.6 V.
10. The lowest filament voltage is 6 V.
11. The highest generation frequency is 500 MHz.
12. The greatest resistance in the circuit of the first grid is 500 kOhm.
