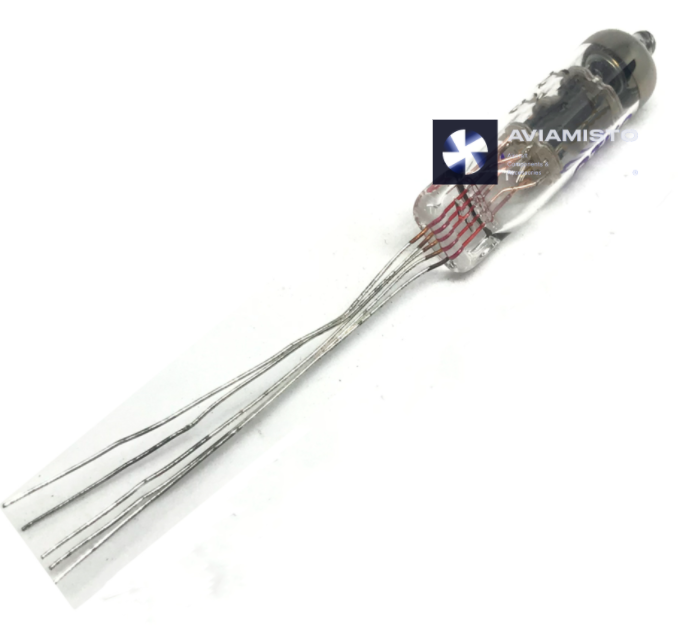

Lamp 6S6B - triodes for amplifying low-frequency voltage, generating high-frequency oscillations in the range up to 500 MHz, as well as for operation in pulsed modes in relaxation circuits. Design - in a glass shell, subminiature. Weight 3.5 g.

1. Heater voltage 5.7-6.9 V.
2. Heater current 200 ± 20 A.
3. Voltage at the anode 330 V.
4. Anode current with a closed lamp 40 ± 12 mA.
5. The voltage between the cathode and the heater is 150 V.
6. Power dissipated by the anode 1.4.
7. Frequency of generation 500.
8. The temperature of the bulb at a normal ambient temperature of 170.
9. The range of working ambient temperatures is -70 … + 90.
10. The cathode current in a pulse is 0.8 A.
11. Operating time ≥500.
12. Voltage of vibration noise Ra = 2 kOhm ≤100.
