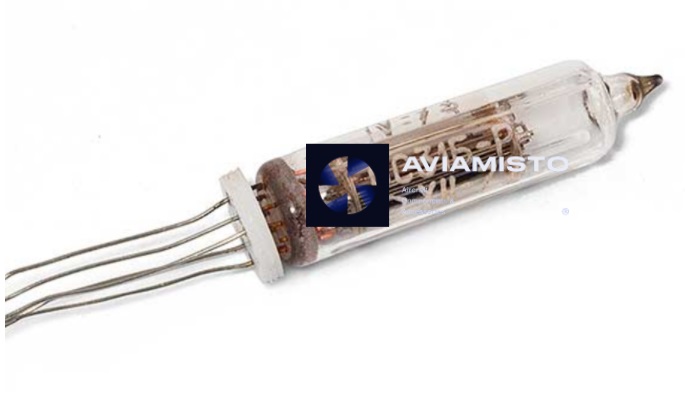

Lamp 6S31B-EP - triodes for amplifying low frequency voltage. Design - in a glass shell, subminiature. Weight 3.5 g.

1. Filament current 220 ± 22A.
2. Anode current at the beginning of the characteristic at Ua = 150 V, Uc = -15 V ≤2.
3. Reverse current of the grid ≤0.2.
4. The steepness of the characteristic is 18 + 6-5.
5. Voltage of vibration noise Ra = 2 kOhm ≤15.
6. Operating time ≥5000.
7. Slope of characteristic ≥10.5.
8. Heater voltage 6-6.6 V.
9. Voltage between cathode and heater 200 V.
10. Power dissipated by the anode 2.5.
11. Resistance in the grid chain 1.
12. Range of working ambient temperatures -60 … + 125 ° C.
