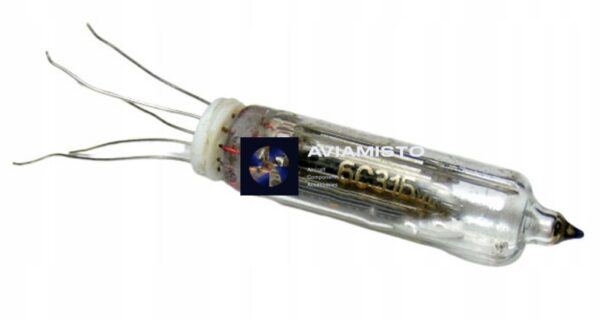

Lamp 6S31B is a subminiature glass triode. Designed to amplify low frequency voltage. Works in any position. Produced in miniature glass design. Durability not less than 5000 hours. Weight not more than 4 g.

1. Heater voltage 6.3 V.
2. The voltage at the anode is 100 V.
3. Filament current 220 ± 22 mA.
4. The current in the anode circuit is 40 mA.
5. The slope of the characteristic is 18 mA / V.
6. Gain 17.
7. The highest filament voltage is 6.6 V.
8. The lowest filament voltage is 6 V.
9. The highest voltage at the anode is 100 V.
10. The highest power dissipated at the anode is 2.5 watts.
11. The highest current in the cathode circuit is 7 mA.
12. The greatest resistance in the grid circuit is 1 Mohm.
13. Design – miniature glass.
