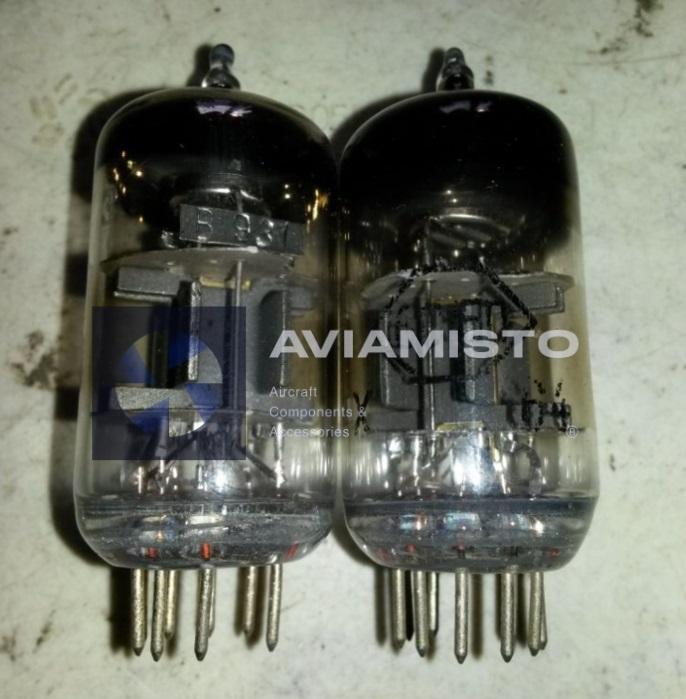

Lamp 6S15P - triodes for amplifying high frequency voltage. Decoration - in a glass shell, miniature. Weight 20 g.

1. Heater current 440 ± 40 A.
2. Anode current at the beginning of the characteristic at Uс = -15 V ≤10.
3. Reverse current of the grid ≤0.3.
4. Slope of characteristic Un = 5.7 V ≥25.
5. Gain 52 ± 16.
6. Input resistance f = 60 MHz 3.5.
7. Voltage of vibration noise Ra = 0.5 kOhm ≤100.
8. Operating time – ≥1000.
9. Heater voltage 5.7-7 V.
10. Anode voltage 150 V.
11. Power dissipated by the anode 7.8.
12. The temperature of the bulb is 210 ° C.
