LAMPS
6P14P-EV
6P14P-EV
LAMPS
Available on back-order
Description

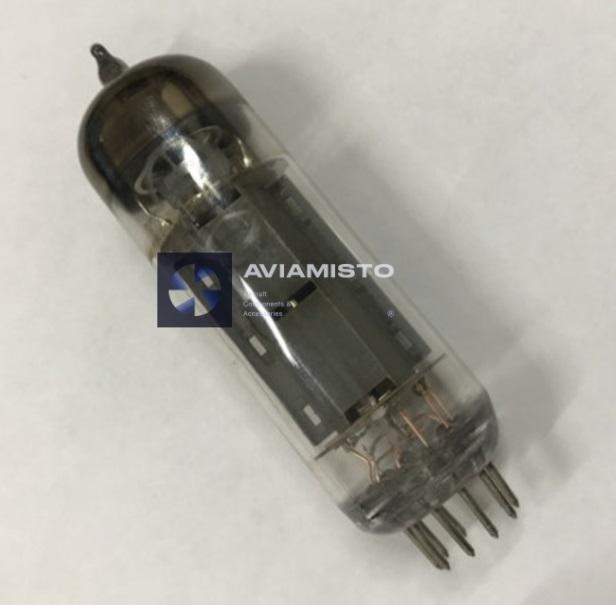

The 6P14P-EV lamp is a miniature output pentode of increased durability, reliability and mechanical strength. Designed to amplify low frequency power. Durability not less than 5000 hours. Weight not more than 20 g.
Details
1. Heater voltage 6.3 ± 0.6 V.
2. Filament current 760 ± 60 mA.
3. Nominal anode voltage (constant) 250 V.
4. The anode voltage limit is 300 V.
5. Anode current 48 ± 8 mA.
6. Cathode current limit 65 mA.
7. The second grid voltage is rated (constant) 250 V.
8. The second limit grid voltage (constant) is 300 V.
9. Secondary grid current, no more than 7 mA.
10. The power dissipated by the anode, the limiting 14 watts.
11. The power dissipated by the second grid is 2 W.
12. The voltage between the cathode and the heater is limiting (constant) 100 V.
13. The slope of the characteristic is 11.3 mA / V.
14. The gain in triode connection is about 20.
15. Internal resistance 30 kOhm.
16. Resistance in the cathode circuit for automatic bias 120 ohms.
17. The input capacitance is about 11 pF.
18. The output capacitance is about 7 pF.
19. Capacitance through passage about 0.2 pF.
20. Design – miniature glass.
