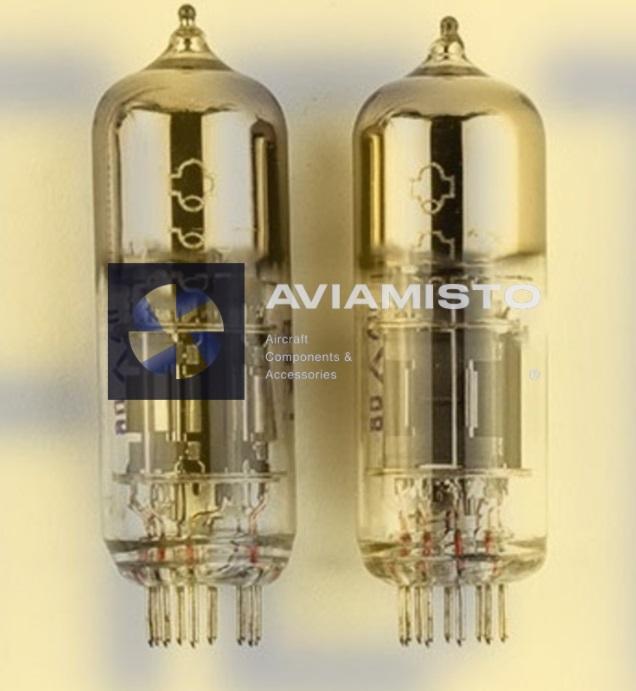

Pulse double triode - 6N30P-DR has a double heated cathode and is used in various radio engineering devices. The luminaire has a finger-type, miniature glass body with rigid contacts on the base, shaped like a button.

1. Maximum filament current, at a rated voltage of 6.3 V: 825 mA.
2. The operating current in the circuit of each anode is 40 mA.
3. The operating voltage supplied to each anode is 250 V.
4. The real voltage of the anode with a closed control grid is 1050 V.
5. Input / throughput / output capacitance of each triode: 6.3 / 6 / 2.4 pF.
6. Weight of the device without container: 20 g.
