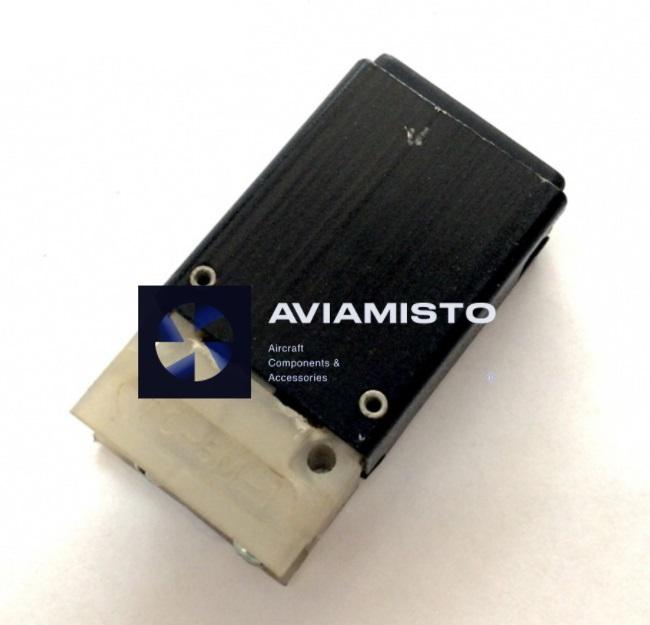

The TS-5M light-signal board is intended for issuing information in the form of a luminous inscription of a certain color about the state of units and systems.
Light signal panels TS-5M are structurally made in five versions: with red, yellow, green, blue and white light filters.

1. Ambient temperature from -60C to + 60C.

2. Supply voltage 28V.

3. Applied lamp CM 28-1.4-1.

4. The mass of the board is 40 g.

5. Overall dimensions – 16.2×29.2×57 mm.
