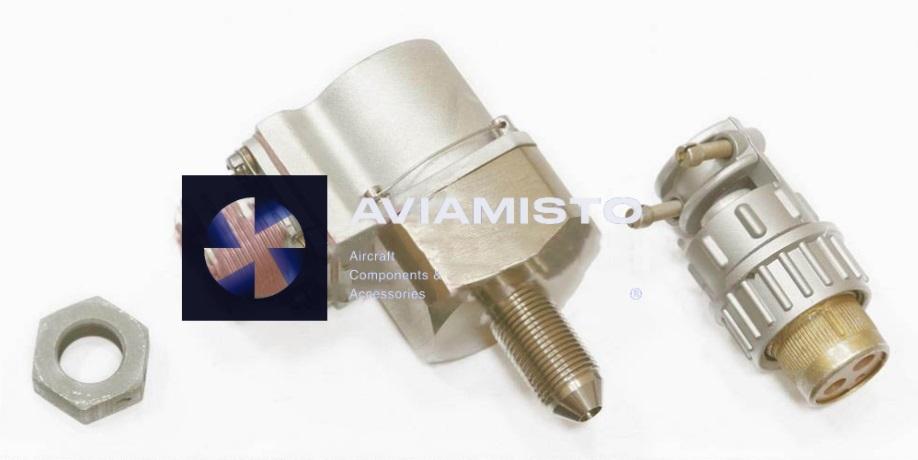

The МSТ-25A signaling device is designed to generate an electrical signal (electrical circuit closure) when the excess pressure of the working medium in the system rises to a certain value - for МSТ-A.
Peculiarities:
- special union;
- long service life and service life;
- high reliability.

1. The voltage of the switched circuit is 27 V.
2. Switching current:
– with an ohmic load of 1.5 A,
– with an inductive load of 0.5 A.
3. Working ambient temperature from –60 to +180 ° С.
4. Service life 30,000 hours.
5. Service life 30 years.
6. Dimensions 48x58x32 mm.
7. Weight 180 g.
