VERTICAL
TSGV-10P p.4
TSGV-10P p.4
VERTICAL
Available on back-order
Description

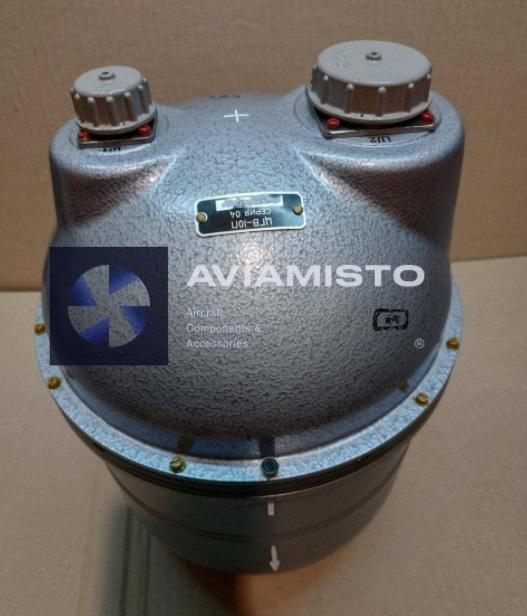

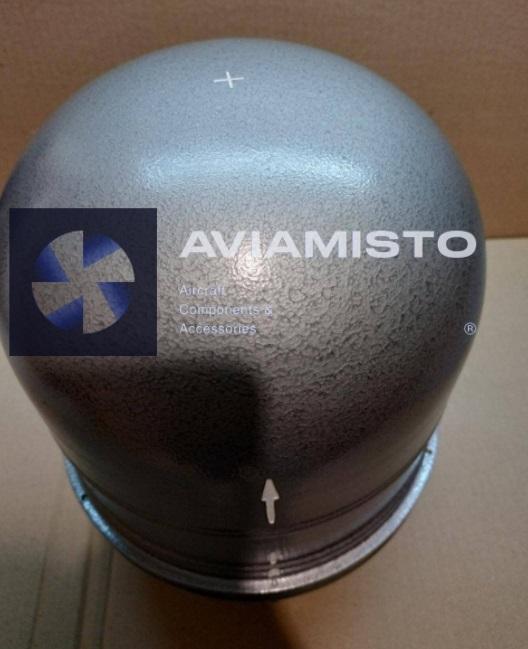

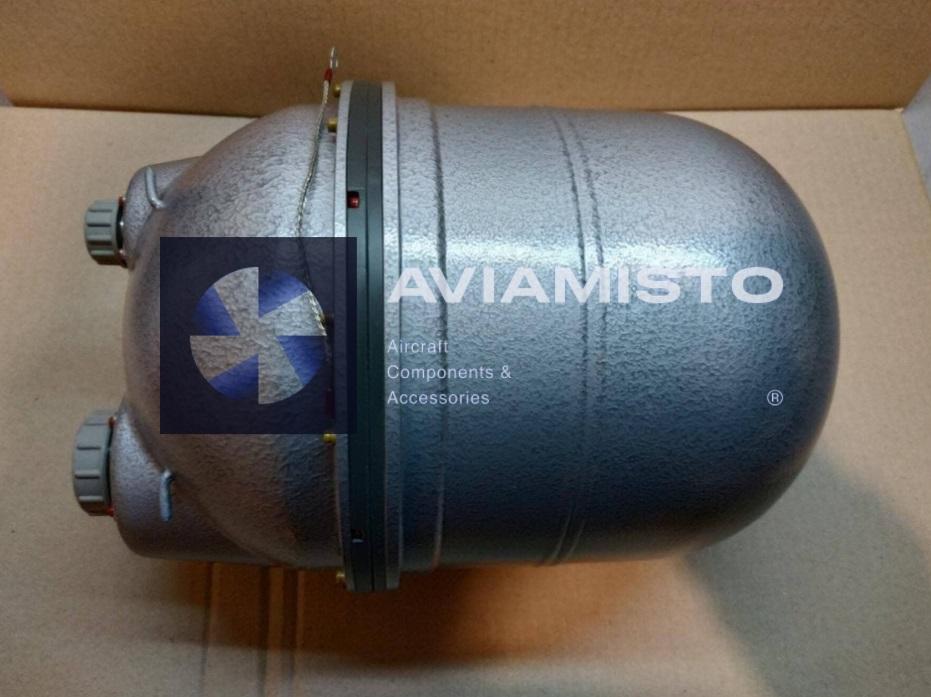

The central vertical gyro TSGV-10P is designed to determine the spatial position of the aircraft. TsGV is a two-gyro power stabilization system.
TSGV-10P systems generate and transmit to consumers:
1) a signal proportional to the roll and pitch angles: - left CHV - into the main ACS channel, into the left pilot's checkpoint and into the main gyro unit GA-3 TKS-P; - CGV right - into the backup channel of the ACS, in the checkpoint of the right pilot and into the control gyro unit GA-3 TKS-P; - CGV control - on the roll and pitch indicator UKT-2, in the UVK, on the radar-P antenna, in DISS-013 and in the main gyro unit GA-3 in case of failure of the CGV left;
2) the signal "READY": - left and right main CHV - to the main and backup channels of the ACS; - TSGV control - in DISS-013
3) "FAILURE" signal: - left and right central gas supply - to the "ARRETIR" lamps of the left and right checkpoint and in RI-65; - CHV control - on the board "FAILURE CHV KONTR." on the instrument panels of the left and right pilots and in the RI-65.
Details
The main principle and goal of Aviamisto has always been the high quality of products and services, as well as their prompt delivery to customers.
Payment & delivery
All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.
In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.
Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.
Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.
Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.
Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
