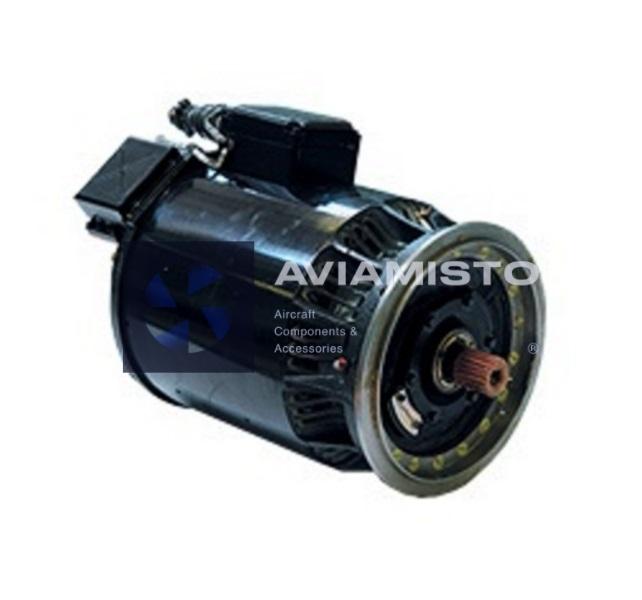

GT40PCH-6 is a three-phase synchronous brushless machine with built-in exciter and exciter with a rotating rectifier unit. For the implementation of the autonomy of the excitation, as well as for the supply of protection and control circuits, an exciter with excitation from a permanent magnet is placed on the same shaft with the generator and the exciter.

1. Rated current frequency 400Hz;

2. Power factor 0.85;

3. Rated power 40kVA;

4. Rated current 111A;

5. Line voltage 208V;

6. Rated rotation speed 6000 rpm;

7. Number of phases – 3;

8. Connection of the “Star” phases with the output neutral;

9. Cooling by air blowing with a pressure of 450 – 600 mm water column;

10. Long-term operating mode;

11. Product weight, no more than 38.8 kg;

12. Dimensions 412.5 x 292 x 230mm.
